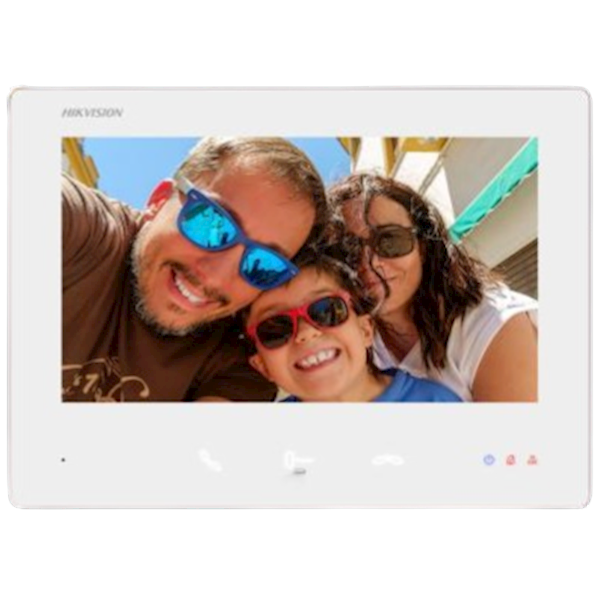

DS-KH7300EY-TE2/WHITE, Doorschakelen, binnenpost, Wit

• Uitstekend productontwerp: 7-inch touchscreen met 1024 x 600 hoge resolutie
• Eenvoudig te gebruiken: DEC-knoppenconfiguratie;
• Eenvoudig te gebruiken: Plug & play, ondersteunt verschillende verbindingstopologieën
• Eenvoudig te gebruiken: meerdere indicatoren: aan/uit, dempen, in gebruik
• Gemakkelijk te gebruiken: Max. 4 aangepaste virtuele knoppen
• Bekijk liveweergave van deurstations
• Ondersteuning van professionele studio-/handelsknopfunctie (deuren automatisch openen)
• Ondersteuning verdiepingsoproep

Technische specificaties

System Parameters Operating SystemEmbedded Linux operation system ROM32 MB RAM128 MB CPUEmbedded processor Display Parameters Screen Size7-inch Operation MethodCapacitive touch screen TypeColorful TFT screen Resolution1024 × 600 Video Parameters Lens/ FOV/ WDR/ Resolution/ Focal Length/ Audio Parameters Audio Compression StandardG.711 U G.711 A Audio Input1 Built-in omnidirectional microphone Audio Output1 Buit-in loudspeaker Audio Compression Bitrate64 Kps Audio QualityNoise suppression and echo cancellation Volume AdjustmentAdjustable Capacity Event Capacity200 captured pictures (with TF card) Linked Indoor Extensions Capacity3 Network Parameters Communication ProtocolTCP/IP, RTSP Wired Network10/100 Mbps self-adaptive through 2-wire interface Wi-Fi Standard/ 3G/4G Standard/ Zigbee/ Device Interfaces Alarm Input 1 TAMPER/RS-485/USB/ TF CardMax to 128 G, SD 2.0 or lower version Alarm Output/ DIP Switch5 decimal DIP switch and 4 binary DIP switch Power Supply Input12V DC Two-Wire IP Interface2, 1 for input 1 for output General Button3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button(Reset) InstallationSurface mounting Indicator3(Power?Mute?In use) Protective Level Working Temperature-10 °C to 50 °C (14 °F to 122 °F) Working Humidity10% to 90% (no-condensing) Dimensions190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8") Battery/Power Supply48V,Powered by DS-KAD7060EY or DS-KAD7061EY Application Environment Indoor Power Consumption≤ 4W(stand by ≤ 1W) LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Download datasheet
