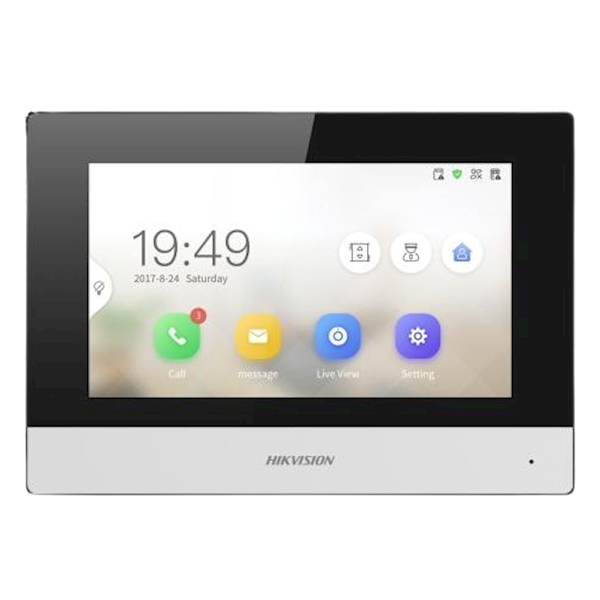

DS-KH6320-WTE2, 2-draads binnenpost zwart/zilver, 7 inch

• Belangrijk: lees het artikel hier eerst alvorens te beginnen met de installatie: klik hier voor meer informatie
• Tweepins draad voor voeding en netwerktoegang
• SD kaart wordt ondersteund tot 32GB
• Gebruikersinterface V2.0: gebruiksvriendelijk ontwerp
• 7-inch kleurrijk touchscreen met resolutie 1024 x 600
• 2-kanaals transmissieplan
• Slaat berichten en vastgelegde foto's op in de TF-kaart Ontgrendeling op afstand via de clientsoftware of mobiele client
• Bekijk live video's van deurstations en gekoppelde camera's Ondersteunt draadloos netwerk

Technische specificaties

Compatibility: Interphone installation - HIKVISION 2-wire Shield: 7 " - capacitive touch screen Resolution: 1024 x 600  Internal memory: 128 MB (built-in) Main features: Wi-Fi module - IEEE 802.11 b/g/n, Microphone built-in, Speakers built-in, Bidirectional communication, Smooth adjustment of monitor parameters: image brightness, ring tone volume and conversation volume, Automatically capture and save photos if there is no response to the bell button, IP Hikvision cameras support, The ability of direct communication between two or more panels, Register a short voice message if there is no response to the bell button Support for capturing a photo during video calls The microSD cards support max. 32 GB (not included) The device is fully configurable via the iVMS4200 software. In addition, the device has the ability to work with the Hik-Connect application on mobile devices The device operates based on TCP/IP, SIP, RTSP protocols Controlling: capacitive touch screen Default administrator password: 888999  Default password for securing the zone: 123456  Alarm inputs: 8  Alarm outputs: 2  Power supply: 24 V DC - HIKVISION 2-wire Power consumption: ≤ 6 W Color: Black + Silver Operation temp: -10 °C ... 50 °C Weight: 0.33 kg Dimensions: 200  x 140  x 25 mm Supported languages: Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian Manufacturer / Brand: HIKVISION SAP Code: 305301758  Guarantee: 3 years

Download datasheet
