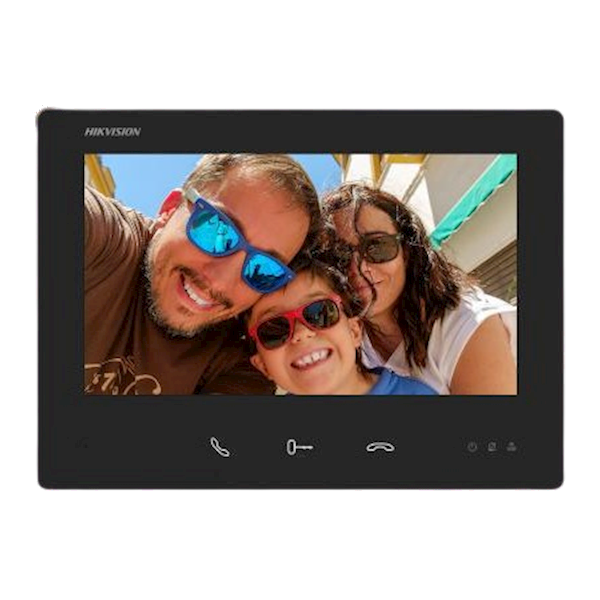

DS-KH7300EY-WTE2, 2-draads Modulaire intercom, binnenpost (WiFi)

• 7-inch touchscreen met 1024x600 hoge resolutie
• 3 aanraakknoppen, vriendelijk voor lichamelijk gehandicapten
• Eenvoudig te gebruiken: DEC-knoppenconfiguratie;
• Eenvoudig te gebruiken: Plug & play, ondersteunt verschillende verbindingstopologieën
• Eenvoudig te gebruiken: ondersteunt Hik-Connect-app (model met W)
• Eenvoudig te gebruiken: meerdere indicatoren: Wi-Fi, aan/uit, dempen, in gebruik
• Gemakkelijk te gebruiken: Max. 4 aangepaste virtuele knoppen
• Bekijk liveweergave van deurstations
• Ondersteuning van professionele studio-/handelsknopfunctie (deuren automatisch openen)
• Ondersteuning verdiepingsoproep

Technische specificaties

System Parameters Operating SystemEmbedded Linux operation system ROM32 MB RAM128 MB CPUEmbedded processor Display Parameters Screen Size7-inch Operation MethodCapacitive touch screen TypeColorful TFT screen Resolution1024 × 600 Video Parameters Lens/ FOV/ WDR/ Resolution/ Focal Length/ Audio Parameters Audio Compression StandardG.711 U G.711 A Audio Input1 Built-in omnidirectional microphone Audio Output1 Buit-in loudspeaker Audio Compression Bitrate64 Kps Audio QualityNoise suppression and echo cancellation Volume AdjustmentAdjustable Capacity Event Capacity200 captured pictures (with TF card) Linked Indoor Extensions Capacity3 Network Parameters Communication ProtocolTCP/IP, RTSP Wi-Fi Standard2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n 3G/4G Standard/ Zigbee/ Device Interfaces Alarm Input1 TAMPER/ RS-485/ USB/ TF CardMax to 128 G, SD 2.0 or lower version Alarm Output/ DIP Switch5 decimal DIP switch and 4 binary DIP switch Power Supply Input48V,powered by DS-KAD7060EY or DS-KAD7061EY Two-Wire IP Interface2, 1 for input 1 for output General Button3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button(Reset) InstallationSurface mounting Indicator4(Wifi?Power?Mute?In use) Protective Level/ Working Temperature-10 °C to 50 °C (14 °F to 122 °F) Working Humidity10% to 90% (no-condensing) Dimensions190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8") Battery Power Supply48V,Powered by DS-KAD7060EY or DS-KAD7061EY Application EnvironmentIndoor Power Consumption≤ 5W (stand by ≤ 1.2 W) LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
