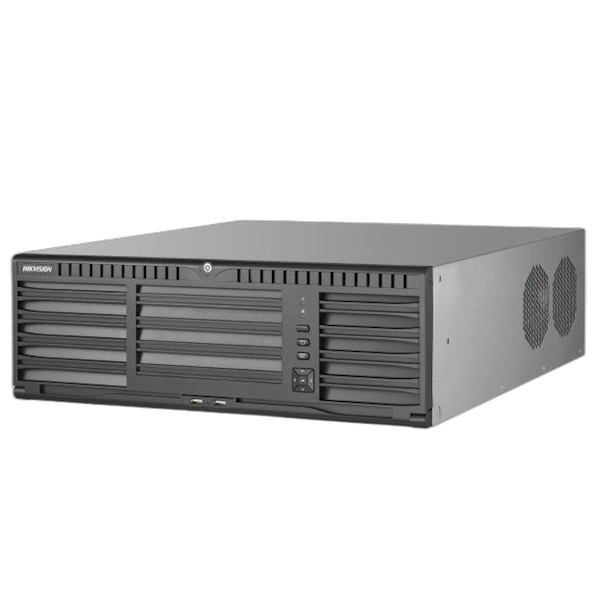

DS-96128NI-I16 Hikvision Pro 128-kanaals NVR I-serie, 16x Bay HDD

• Tot 12 Megapixels opname
• 2 HDMI waarvan 1 met 4K, 2 VGA
• 16 SATA-interfaces, HDD hot swap en RAID0,1,5,6,10 instelbaar
• H.265 / H.264 / MPEG4-videoformaten
• Max. 320Mbit/s opname (of 200Mbit/s bij gebruik van RAID)
• Webondersteuning voor Internet Explorer, Safari, Firefox
• Gratis apps voor iPhone, Android (iVMS-4500)
• Gratis VMS-software voor pc en Mac (iVMS-4200)

Technische specificaties

Video/Audio Input IP video input: 128-chTwo-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)NetworkRemote connection: 256Video/Audio OutputAudio Output: 1-ch, RCA (2.0Vp-p, 1KΩ)VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60HzHard DiskeSATA: 1 eSATA interfaceSATA: 16 SATA interfaces for 16 HDDs miniSAS(Optional): 2 miniSAS interface Disk arrayNumber of array: 8 External Interface Optic fiber interface: 4 1000 Mbps optional optic fiber interfacesNetwork Interface: 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfacesSerial Interface: RS-232, RS-485, Keyboard USBInterfaceFront panel: 2 × USB 2.0Rear panel: 2 × USB 3.0Alarm In: 16-chAlarm Out: 4-chGeneralPower Supply: 100-240 VAC, 550W Consumption(without hard disk and POE): ≤ 140WWorking Humidity: 10% ~ 90%Dimensions: 442 × 494 146 mm (17.4 × 19.4 5.7 inch)Weight(without HDD): ≤16kg (35.3lb)
