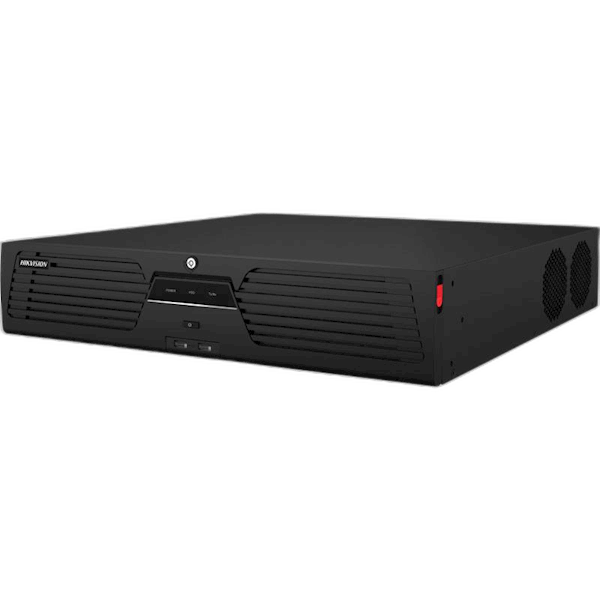

DS-9616NI-M8 Hikvision Pro 16-kanaals NVR M-serie, 8x Bay HDD

• Maximaal 16-kanaals IP-camera-ingangen
• Tot 2-kan.@32 MP/2-kan.@24 MP/4-kan.@12 MP/8-kan.@8 MP/16-kan.@4 MP/32-kan.@1080p decoderingscapaciteit
• Tot 256 Mbps inkomende bandbreedte en 256 Mbps uitgaande bandbreedte
• 2 HDMI (verschillende bronnen) en 2 VGA (verschillende bronnen) interfaces, 8K of dubbele 4K video-uitgangen
• Ondersteunt speciale camera's, waaronder een camera voor het tellen van mensen, een ANPR-camera (automatische nummerplaatherkenning) en een fisheye-camera
• Geavanceerde streamingtechnologie maakt vloeiende liveweergave mogelijk bij slechte netwerkomstandigheden
• Ondersteunt RAID 0, 1, 5, 6, 10 en N+M hot spare voor nog betrouwbaardere gegevensopslag, vermijdt effectief het risico van gegevensverlies

Technische specificaties

Video And AudioIP Video Input16-chIncoming Bandwidth320 MbpsOutgoing Bandwidth400 MbpsHDMI 1 Output8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 HzHDMI 2 Output4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.VGA 1 Output1920 × 1080/60 HzVGA 2 Output1920 × 1080/60 HzVideo Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary outputCVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480Audio Output2-ch, RCA (Linear, 1 KΩ)Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)DecodingDecoding FormatH.265+/H.265/H.264+/H.264Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFSynchronous Playback16-chDecoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCMNetworkNetwork ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPSNetwork Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaceRAIDRAID TypeRAID0, RAID1, RAID5, RAID6, RAID10Auxiliary InterfaceSerial Interface1 RS-485 (full-duplex), 1 RS-232SATA8 SATA interfaces supporting hot-plugESATA1 eSATA interfaceCapacityUp to 16 TB capacity for each diskAlarm In/Out16/9USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.DC 12V12 VDC, 1 A power outputGeneralPower Supply100 to 240 VAC, 50 to 60 HzConsumption≤ 50 W (without HDD)Working Temperature-10 °C to 55 °C (14 °F to 131 °F)Working Humidity10% to 90%Chassis2U chassisDimension (W × D × H)445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")Weight≤ 10 kg (without HDD, 22 lb.)CertificationObtained CertificationCE, FCCCEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
