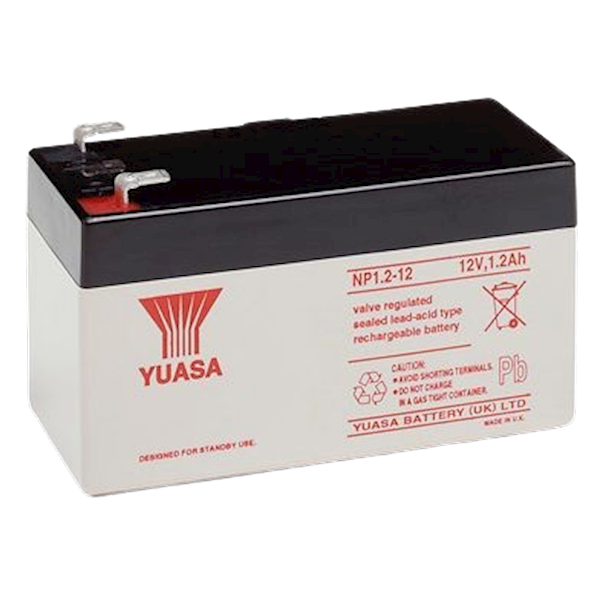

Yuasa 12V 1.2Ah accu

• Toepassing: Loodaccu 12V/1.2Ah
• Merk Yuasa
• Lengte 97mm
• Breedte 48mm
• Hoogte 54.5mm
• Voltage 12V
• Type: Loodaccu

Technische specificaties

SpecificationsNominal voltage (V) 1220-hr rate Capacity to 10.5V at 20°C (Ah) 1.210-hr rate Capacity to 10.8V at 20°C (Ah) 1.1DimensionsLength (mm) 97 (±1)Width (mm) 48 (±1)Height over terminals (mm) 54.5 (±2)Mass (kg) 0.58Terminal TypeFASTON - Quickfit / release (JST where stated) 4.75Operating Temperature RangeStorage (in fully charged condition) -20°C to +60°CCharge -15°C to +50°CDischarge -20°C to +60°CStorageCapacity loss per month at 20°C (% approx.) 3Case MaterialStandard ABS (UL94:HB)Charge VoltageFloat charge voltage at 20°C (V)/Block 13.65 (±1%)Float charge voltage at 20°C (V)/Cell 2.275 (±1%)Float Chg voltage tmp correction factor from std20°C (mV)-3Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)Cyclic Chg voltage tmp correction factor from std20°C (mV)-4Charge CurrentFloat charge current limit (A) No limitCyclic (or Boost) charge current limit (A) 0.3Maximum Discharge Current1 second (A) 361 minute (A) 12ImpedanceMeasured at 1 kHz (mΩ) 110Design Life & ApprovalsEUROBAT Classification: Standard Commercial 3 to 5 yearsYuasa design life at 20°C (yrs) up to 5VdS (Germany) VdS No: G 101094

Download datasheet
