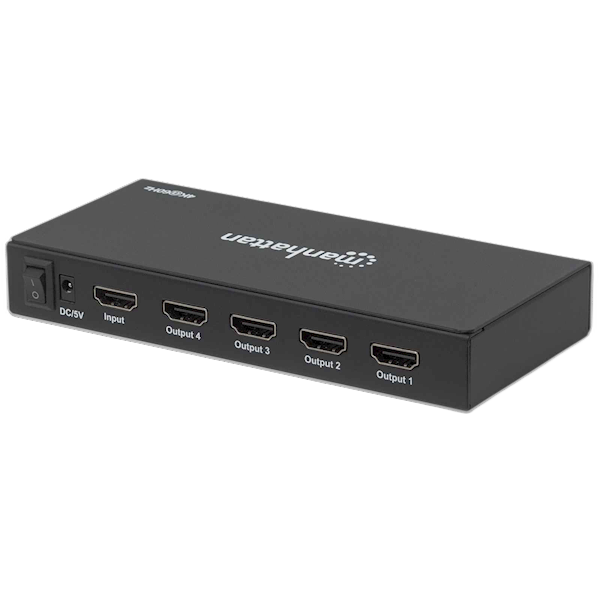

4K 4-Port HDMI Splitter

Technische specificaties

Standards & Certification HDCP 2.2/1.4 CTS 1.4b CE FCC RoHS2 General Source-to-splitter and splitter-to-display range: up to 20 m (66 ft.)4K@60Hz 4:4:4 — total 10 metersMax. 5 m from source to splitterMax. 5 m from splitter to display4K@30Hz — total 20 metersMax. 10 m from source to splitterMax. 10 m from splitter to display Power adapter: 5 VDC / 2 A; 1.2 m (4 ft.) Power consumption: 5 W Connections One HDMI female (input) Four HDMI female (output) One 5 VDC power female (input)Signal Input/Output Input video signal: 0.5 – 1.0 V p-p Input DDC signal: 5 V p-p (TTL) Maximum single-link range: 18 Gbps and 4096x2160 at 60 Hz resolution Output video: HDMI 2.0, HDCP 2.2 Supported Video Resolutions DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz Physical LED indicators: power and port connection On/off switch Dimensions: 154 x 69 x 23 mm (6.1 x 2.7 x 0.9 in.) Weight: 0.25 kg (0.7 lb.) Housing: metal Operating Enviroment Operation Temperature: 0 – 40°C (32 – 104°F) Storage Temperature: -20 – 60°C (-4 – 140°F) Humidity (noncondensing): 0 – 96% Package Contents 4K 4-Port HDMI Splitter Power adapter Quick Instruction Guide

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
