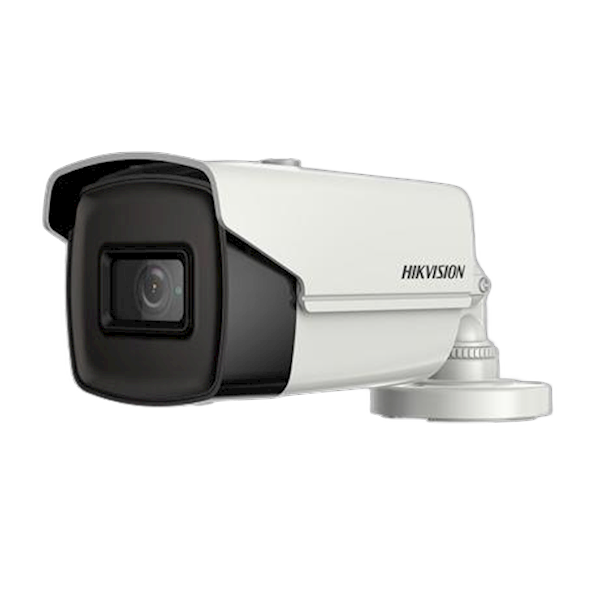

5MP, Weinig licht, 2.8mm, 60m EXIR, DS-2CE16H8T-IT3F 2.8MM

• 5 Megapixel high-performance CMOS
• 2560 × 1944 resolutie
• EXIR 2.0, smart IR, tot 60 m IR afstand
• OSD menu, 3D DNR
• 130 dB True WDR
• 4 in 1 video output (schakelbare TVI/AHD/CVI/CVBS)
• IP67
• Kijkhoek van 98°



Technische specificaties

CameraImage Sensor: 5 megapixel progressive scan CMOSSignal System: PAL/NTSCEffective Pixels: 2560 (H) × 1944 (V)Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IRShutter Time: 1/25(1/30) s to 1/50,000 sLens: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lensLens Mount: M12Adjustment Range: Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°Day& Night: IR cut filterVideo Frame Rate: 2560 × 1944 @ 20fpsSynchronization: Internal SynchronizationMenuD/N Mode: Auto / Color / B/WAuto White Balance: Auto / ManualBLC: SupportAGC: SupportLanguage: EnglishFunction: Brightness, Sharpness, Mirror, Smart IRInterfaceVideo Out: 1 HD analog outputGeneralOperating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)Humidity 90% or less (non-condensing)Power Supply: 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.Weather Proof: IP67IR Range: Up to 60mDimension: 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )Weight: Approx. 570 g (1.26 lb.)

Download datasheet
