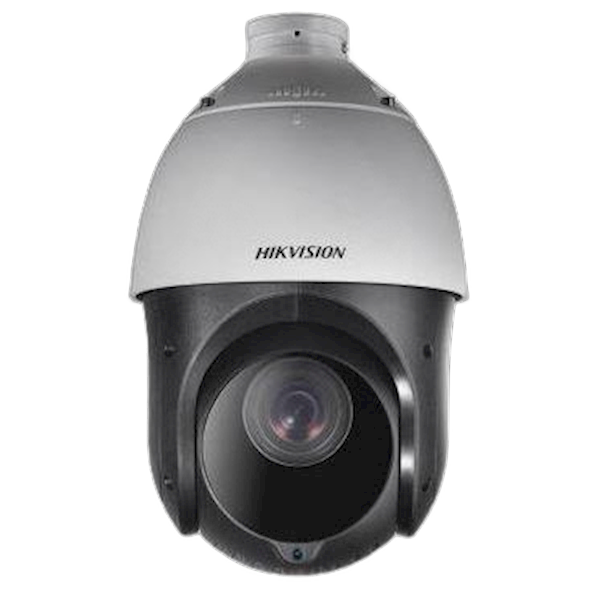

DS-2AE4225TI-D, Turbo 2MP PTZ; 25x optische zoom; 100m IR

• Turbo HD-TVI PTZ
• 1/2.8'' Progressive Scan CMOS
• 1920×1080
• 25X optische zoom
• WDR 120dB
• Tot 100 m IR-afstand
• 3D intelligente positioneringsfunctie
• Schakelbare Turbo HD- en CVBS-uitgangen
• Deze 2MP PTZ werkt middels HD-TVI techniek maar kan ook via een schakelaar omgezet worden naar een regulier ongecomprimeerd CVBS signaal.


Technische specificaties

Camera Image Sensor:   1/2.8" Progressive Scan CMOS Effective Pixels:   1920(H)x1080(V) Signal System:   PAL/NTSC Minimum Illumination:   Color: 0.05Lux@( F1.4,AGC ON); B/W: 0.005Lux@( F1.4,AGC ON), 0 Lux with IR White Balance:   Auto / Manual / ATW / Indoor / Outdoor AGC:   Auto/Manual BLC:   ON/OFF WDR:   Support Shutter Time:   1-1/10,000s Day& Night:   ICR Digital Zoom:   16X Privacy Masking:   8 privacy masks programmable Auto Focus:   Auto / Semi-automatic / Manual Lens Focal Length:   4-92.0mm, 23x Zoom Speed:   Approx.3s(Optical Wide~Tele) Angle of View:   49-2.2 degree(Wide-Tele) Minimum Working Distance:   10~1,000mm(Wide~Tele) Aperture Range:   F1.4-F3.5 Pan & Tilt Pan Range:   360°endless Pan Speed:   Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s Tilt Range:   -15°-90° (Auto Flip ) Tilt Speed:   Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples Number of Preset:   256 Patrol:   8 patrols, up to 32 presets per patrol Pattern:   4 patterns, with the total recording time not less than 10 minutes Power loss recovery:   Support Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan PTZ Position Display:   ON/OFF Freeze Frame:   Support Infrared IR irradiation distance:   100m IR irradiation angle:   Adjustable by zoom General RS-485 Protocols:   HIKVISION, Pelco-P, Pelco-D, self-adaptive Menu Language:   English Power Supply:   12V DC Power Consumption:   Max.18W Working Temperature/Humidity:   -30 °C-65°C(-22°F-149°F)90% or less Protection Level:   IP66 standard (outdoor dome)TVS 4,000V lightning protection, surge protection and voltage transient protection Mounting:   Various mounting modes optional Dimensions:   Φ164.5(mm)×295(mm) Weight (approx.):   2Kg (4.41Ibs) Mount Option:   Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
