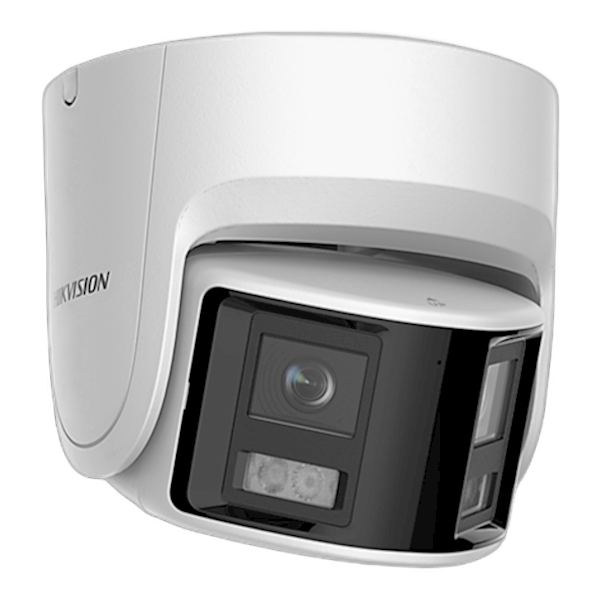

DS-2CD2347G2P-LSU/SL Hikvision dome ColorVu 4MP, 180 graden panoramisch 2.8mm

• Welke NVR is benodigd bij deze 180° camera: klik hier
• Bekijk hier de beeldkwaliteit
• 24/7 kleurrijke beeldvorming
• Efficiënte H.265+ compressietechnologie
• Helder beeld bij sterk tegenlicht dankzij 130 dB WDR-technologie
• Focus op classificatie van mensen en voertuigen op basis van deep learning
• Actief stroboscooplicht en audioalarm om indringers te waarschuwen
• Water- en stofbestendig (IP67)
• Eén beeld met alle scènes

Technische specificaties

Camera Image Sensor2 × 1/2.5" Progressive Scan CMOS Max. Resolution3040 × 1368 Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time1/3 s to 1/100,000 s Angle AdjustmentPan: -30° to 30°,tilt: -75° to 75°Lens Lens Lens Type Fixed focal lens, Dual lens: 2.8 mm Focal Length & FOV 2.8 mm Horizontal FOV: 180°, Vertical FOV: 81° Lens Mount M12 Iris Type Fixed Aperture F1.0 Depth Of Field 2 m to ∞ DORI DORI 2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m Illuminator Supplement Light Type White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes Video Main Stream 50 Hz: 25 fps (3040 × 1368) 60 Hz: 24 fps (3040 × 1368) Sub-Stream 50 Hz: 25 fps (1200 × 536, 960 × 432) 60 Hz: 24 fps (1200 × 536, 960 × 432) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile, High Profile H.265 TypeMain Profile Bit Rate ControlCBR,VBR Scalable Video Coding (SVC)H.264 and H.265 encoding Region Of Interest (ROI)1 fixed region(s) for main stream Audio Audio Type Mono sound Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets Simultaneous Live ViewUp to 6 channels API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ Image Image Parameters Switch Yes Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR)130 dB SNR≥ 52 dB Image EnhancementBLC,HLC,3D DNR Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Built-In Microphone Yes Built-In Speaker Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB. Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) Reset Key Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)) alarm input and output, flashing alarm light output, audible alarm output, exception Smart Event Line crossing detection, intrusion detection, region entrance detection, Region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection Linkage Upload to FTP/NAS/memory card,notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing General Power 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W Materiaal Base: metal, cover: metal Dimension Ø140 mm × 145.6 mm (Ø5.5 × 5.7\")" Package Dimension230 mm × 230 mm × 230 mm (9" × 9" × 9") Weight Approx. 920 g (2.0 lb.) With Package Weight Approx. 1670 g (3.7 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General FunctionAnti-banding, heartbeat, mirror, flash log, pixel counter Flashing LightYes Approval EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 ProtectionIP67: IEC 60529-2013

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
