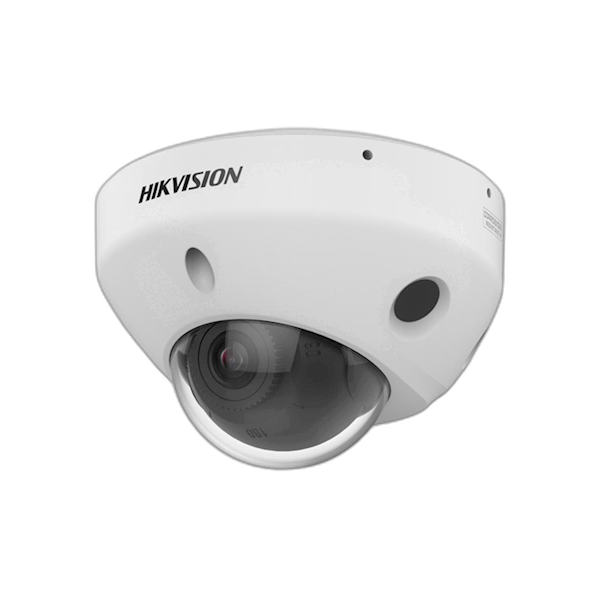

DS-2CD2526G2-I 2.8MM (D), 2MP, 2.8MM, 30m IR, WDR, Ultra Low Light

• Hoge kwaliteit beeldvorming met een resolutie van 2 MP
• 30 meter iR
• Uitstekende prestaties bij weinig licht met aangedreven door DarkFighter-technologie
• Focus op classificatie van mensen en voertuigen op basis van 'Deeplearning' algoritme
• Heldere weergave bij sterk tegenlicht dankzij 120 dB WDR technologie
• Efficiënte H.265 + compressietechnologie
• Water- en stofbestendig conform IP67
• Vandaalbestendig conform  IK08

Technische specificaties

CameraImage Sensor: 1/2.8" Progressive Scan CMOSMin. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON)Day & Night: ICR CutShutter Speed: 1/3 s to 1/100,000 sSlow Shutter: YesAngle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°Wide Dynamic Range: 120 dBLensFocal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°Aperture: F1.4Lens Mount: M12Iris Type: FixedIlluminatorIR Range: Up to 30 mIR Wavelength: 850 nmSmart Supplement Light: YesSupplement Light Type: IRVideoMax. Resolution1920 × 1080Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 720)60Hz: 30 fps (1920 × 1080, 1280 × 720)Sub-Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)Third Stream50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)Video CompressionMain stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264Video Bit Rate: 32 Kbps to 8 MbpsH.264 Type: BaseLine Profile/Main Profile/High ProfileH.265 Type: Main ProfileH.264+: Main Stream supportsH.265+: Main Stream supportsBit Rate Control: CBR/VBRScalable Video Coding (SVC):YesRegion of Interest (ROI): 1 fixed region for main stream and sub-streamAudioEnvironment Noise Filtering: YesAudio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzAudio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AACAudio Bit Rate: 64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 192 Kbps(MP2L2)/ 8 to 320Kbps(MP3)/16 to 64Kbps(AAC)NetworkSimultaneous Live View: Up to 6 channelsAPI: Open Network Video Interface (Porfile S, Profile G), ISAPI, SDKProtocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMPUser/Host: Up to 32 users. 3 user levels: administrator, operator and userSecurity: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supportedClient: iVMS-4200, Hik-Connect, Hik-CentralImageDay/Night Switch: Day, Night, Auto, ScheduleImage Enhancement: BLC, HLC, 3D DNRImage Parameters Switch: YesImage Settings: Rotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserSNR: ≥ 52 dBInterfaceBuilt-in Microphone: YesAudio-S:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibriumAlarm -S: 1 alarm input, 1 alarm output (max. 24 VAC/24 VDC @500 mA)On-Board Storage: Built-in micro SD slot, up to 256 GBHardware Reset: YesEthernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet portEventBasic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)Smart Event: Scene change detectionDeep Learning FunctionFace Capture: YesPerimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detectionGeneralStorage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Power Supply12 VDC ± 25%, reverse polarity protectionPoE: 802.3af, Class 3Power Consumption and Current12 VDC, 0.58 A, max. 7 WPoE: (802.3af, 36 V to 57 V), 0.24 A to 0.15 A, max. 8.5 WPower Interface: Ø5.5 mm coaxial power plugCamera Dimension: Ø120 mm × 67.4 mm (Ø4.7" × 2.7")Package Dimension: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")Camera Weight: Approx. 370 g (0.8 lb.)With Package Weight: Approx. 650 g (1.4 lb.)Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send emailOnly -S model supports: audible warning, trigger alarm output, trigger alarm inputWeb Client Language, 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianGeneral Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counterSoftware Reset: YesApprovalEMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)Protection: ?IP67 (IEC 60529-2013), IK08 (IEC 62262:2002)?
