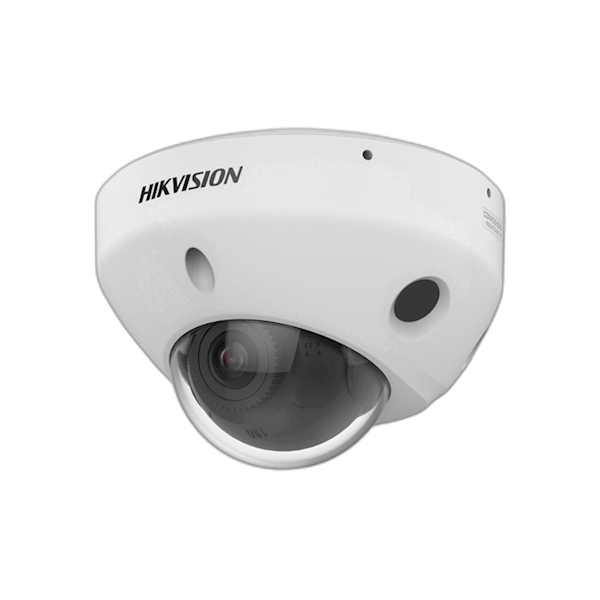

DS-2CD2546G2-IS 2,8MM(C) Hikvision Gold Label 2.0 AcuSense Mini Dome 4MP, 2.8mm, audio

• Hoge beeldkwaliteit met een resolutie van 4 MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• Focus op classificatie van mens en voertuig op basis van Deeplearning
• Heldere weergave bij sterk tegenlicht dankzij 120 dB WDR-technologie
• Efficiënte H.265 + compressietechnologie
• Water- en stofbestendig IP67 en vandaalbestendig IK08

Technische specificaties

Camera Image Sensor1/2.7" Progressive Scan CMOS IlluminationColor: 0.003 Lux @ (F1.4, AGC ON) Shutter Speed1/3 s to 1/100,000 s Day & NightICR Cut Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° Slow ShutterYes P/NP/N Wide Dynamic Range120 dB Lens Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123° 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98° Aperture4 Lens MountM12 Iris TypeFixed Illuminator IR RangeUp to 30 m IR Wavelength850 nm Smart Supplement LightYes Supplement Light TypeIR Video Resolution2592 × 1944 Main Stream 50Hz: 20 fps (2592 × 1944) 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2592 × 1944) 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate32 Kbps to 8 Mbps 264 TypeBaseLine Profile/Main Profile/High Profile 265 TypeMain Profile 264+Main Stream supports 265+Main Stream supports Bit Rate ControlCBR/VBR Scalable Video Coding (SVC) Yes   Region Of Interest (ROI)1 fixed region for main stream and sub-stream Audio Environment Noise FilteringYes Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate64Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 192Kbps(MP2L2)/ 8 to 320Kbps(MP3)/16 to 64Kbps(AAC) Network Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface (Porfile S, Profile G), ISAPI, SDK ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP User/HostUp to 32 users. 3 user levels: administrator, operator and user SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported ClientiVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Day/Night SwitchDay, Night, Auto, Schedule Image EnhancementBLC, HLC, 3D DNR Image Parameters SwitchYes Image SettingsRotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser SNR≥ 52 dB Interface Built-In MicrophoneYes Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibrium Alarm-S: 1 alarm input, 1 alarm output (max. 24 VAC/24 VDC @500 mA) On-Board StorageBuilt-in micro SD slot, up to 256 GB Hardware ResetYes Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port Event Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart EventScene change detection Deep Learning Function Face CaptureYes Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection General Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 Power Consumption And Current 12 VDC, 0.58 A, max. 7 W PoE: (802.3af, 36 V to 57 V), 0.24 A to 0.15 A, max. 8.5 W Power InterfaceØ5.5 mm coaxial power plug Camera DimensionØ120 mm ×4 mm (Ø4.7" × 2.7") Package Dimension134 × 134 × 108 mm (5.3" × 5.3" × 4.3") Camera Weight 370 g (0.8 lb.) With Package Weight 650 g (1.4 lb.) Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send email Only -S model supports: audible warning, trigger alarm output, trigger alarm input Firmware Version5.135 Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter Software ResetYes Approval EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) ProtectionIP67 (IEC 60529-2013), IK08 (IEC 62262:2002)

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
