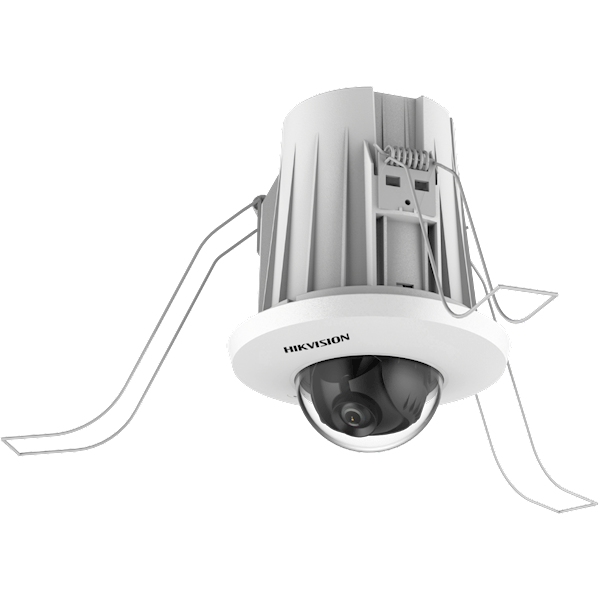

DS-2CD2E43G2-U(2.8MM), 4 MP AcuSense Inbouw Mini Dome

• Hoge beeldkwaliteit met een resolutie van 4 MP
• Helder beeld bij sterk tegenlicht dankzij 120 dB WDR-technologie
• Efficiënte H.265+ compressietechnologie
• Ingebouwde microfoon voor realtime audiobeveiliging
• Focus op classificatie van doelen voor mensen en voertuigen op basis van deep learning

Technische specificaties

Camera Image Sensor1/3" Progressive Scan CMOS Max. Resolution2688 × 1520 Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON) Shutter Speed1/3 s to 1/100,000 s Angle AdjustmentTilt: 0° to 75° Lens Lens Type & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 43°, diagonal FOV 100° ApertureF1.6 Lens MountM12 DORI DORI 2.8 mm: D: 56 m, O: 22 m, R: 11 m, I: 6 m 4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m Video Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Bit Rate ControlCBR/VBR Scalable Video Coding (SVC) Yes Region Of Interest (ROI)1 fixed region for main stream and sub-stream Audio Environment Noise FilteringYes Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) Network Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK , ISUP ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE,SNMP User/HostUp to 32 users. 3 user levels: administrator, operator and user SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) ClientiVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Wide Dynamic Range (WDR)120 dB Day/Night SwitchDay, Night, Auto, Schedule Image EnhancementBLC, HLC, 3D DNR Image Parameters SwitchYes Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Built-In MicrophoneYes On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Hardware ResetYes Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port Event Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception Face DetectionYes Deep Learning Function Perimeter Protection Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) General Power 12 VDC ± 25%, 0.27 A, max. 3.2 W, two-core terminal block PoE: (802.3af, 36 V to 57 V), Class 3, 0.12 A to 0.07 A, max. 4.2 W Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter Storage Conditions-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing) Materiaal Plastic body Screw MaterialSUS304 Camera DimensionØ93.9 × 117.5 mm (Ø3.7" × 4.6") Package Dimension135 × 135 × 183 mm (5.3" × 5.3" × 7.2") Camera WeightApprox. 155 g (0.3 lb.) With Package WeightApprox. 325 g (0.7 lb.) Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015) Safety UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Download datasheet
