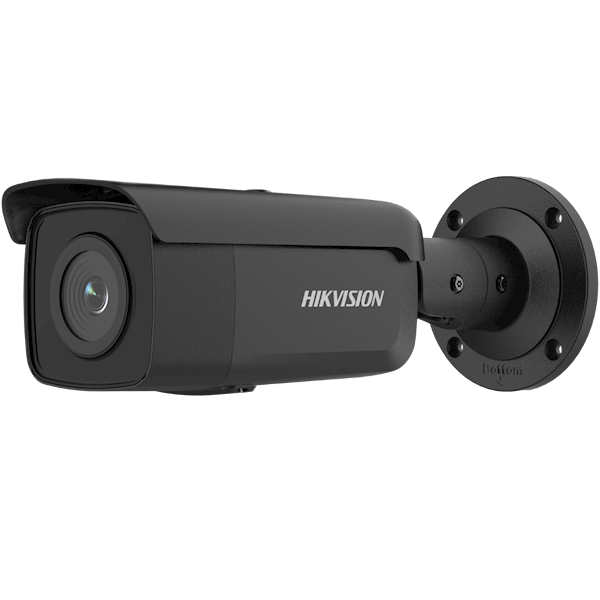

DS-2CD2T46G2-4I Hikvision AcuSense bullet 4MP 4MM zwart

• Hoge beeldkwaliteit met een resolutie van 4 MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• Efficiënte H.265 + compressietechnologie
• Helder beeld bij sterk tegenlicht dankzij 120 dB true WDR-technologie
• Reductie van valse alarmen door middel van classificatie van doelen voor mensen en voertuigen op basis van deep learning
• Water- en stofbestendig (IP67)
• 3D DNR-technologie zorgt voor heldere en scherpe beelden

Technische specificaties

Camera Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON) Day & Night: ICR Cut Shutter Speed: 1/3 s to 1/100,000 s Slow Shutter: Yes Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Wide Dynamic Range: 120 dB Lens Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° Aperture: F1.4 Lens Mount: M12 Iris Type: Fixed Illuminator IR Range: Up to 80 m IR Wavelength: 850 nm Smart Supplement Light: Yes Supplement Light Type: IR Video Max. Resolution2592 × 1944 Main Stream50Hz: 20fps (2592 × 1944)25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2592 × 1944)30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) Video Compression Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile H.264+: Main Stream supports H.265+: Main Stream supports Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): Yes Region of Interest (ROI): 1 fixed region for each stream Network Simultaneous Live View: Up to 6 channels API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP Smooth Streaming: Yes User/Host: Up to 32 users. 3 user levels: administrator, operator and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF Network Storage:MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser:Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Image Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface On-Board Storage: Built-in micro SD slot, up to 256 GB Hardware Reset: Yes Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Deep Learning Function Face Capture: Yes Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Intelligent (traditional algorithm) Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection General Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply12 VDC ± 25%, reverse polarity protectionPoE: 802.3af, class 3 Power Consumption and Current12 VDC, 0.88 A, max. 10.5 WPoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W Power Interface: Ø5.5 mm coaxial power plug Camera Dimension: Ø105 × 289.5 mm Package Dimension: 386 × 156 × 155 mm Camera Weight: Approx. 1090 g With Package Weight: Approx. 1614 g Linkage Method: Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture Web Client Language, 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter Software Reset: Yes Approval EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment: CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) Protection: Ingression protection: IP67 (IEC 60529-2013)

Download datasheet
