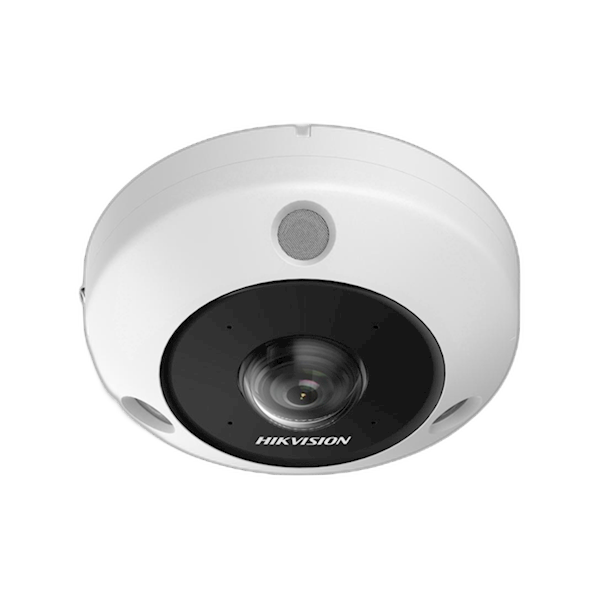

DS-2CD6365G1-IVS 1.16MM, Hikvision DeepinView Fisheye camera 6MP

• Heatmap: op basis van deep learning-algoritmen telt de camera mensen en presenteert een intuïtieve kaart
• Multi-dewarping-modi: het beeld kan worden gecorrigeerd naar een normaal beeld, zodat u het intuïtief kunt bekijken
• Ingebouwde microfoon en luidspreker: de camera ondersteunt tweewegaudio voor realtime bewaking en communicatie van audiobeveiliging
• Ingebouwd IR-licht: een IR-bereik van 15 meter zorgt voor een goede zichtbaarheid in omgevingen met weinig of zelfs geen licht
• Hoge resolutie 6 MP: heldere beelden vastleggen, zelfs wanneer de vervorming in de PTZ-modus met 4 beelden is ingesteld
• Elke afbeelding is duidelijk en gedetailleerd
• Water- en stofbestendig (IP67) en vandalismebestendig (IK10)

Technische specificaties

Video Main Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280 180 Panorama View: 2048 × 1536, 1920 × 1440 180 Dual Channel Panorama View: 2048 × 768, 1920 × 720 Panorama View: 2048 × 1536, 1920 × 1440 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1024 × 768 Fisheye + 3PTZ View: camera 01: 2048 × 2048, 1024 × 1024 camera 02/camera 03/camera 04: 1024 × 768 4PTZ Fusion View: 2048 × 1536, 1600 × 1200 Sub-Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Video Compression Main stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR, VBR Scalable Video Coding (SVC) H.264 and H.265 encodingRegion of Interest (ROI) 4 fixed regions for each stream Fisheye Display Mount Type Support wall/table/ceiling mounting Decoding Mode Support hardware decoding and software decoding Display Mode 20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Audio Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets Simultaneous Live View Up to 20 channels API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image Image Parameters Switch Yes Image Settings saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger Wide Dynamic Range (WDR) Digital WDR Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog Privacy Mask 8 programmable polygon privacy masks Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. Interface Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Built-in Microphone Yes, 4 built-in microphones Built-in Speaker Yes, 1 built-in speaker Audio 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A) RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Reset Key 1 Reset Key Event Basic Event Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Deep Learning Function People Counting Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method Queue Management Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold Heat Map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart. Intersection Analysis Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways General Power 12 VDC ± 20%, 1 A, max. 11.5 W, two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5 W Material Metal Dimension Ø 140.3 mm × 59.4 mm (Ø 5.5" × 2.3") Package Dimension 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") Weight Approx. 715 g (1.58 lb.) With Package Weight Approx. 1206 g (2.66 lb.) Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding Heater Yes Cable Length 0.31 m (1.02 ft.) Approval EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3- 2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002

Download datasheet
