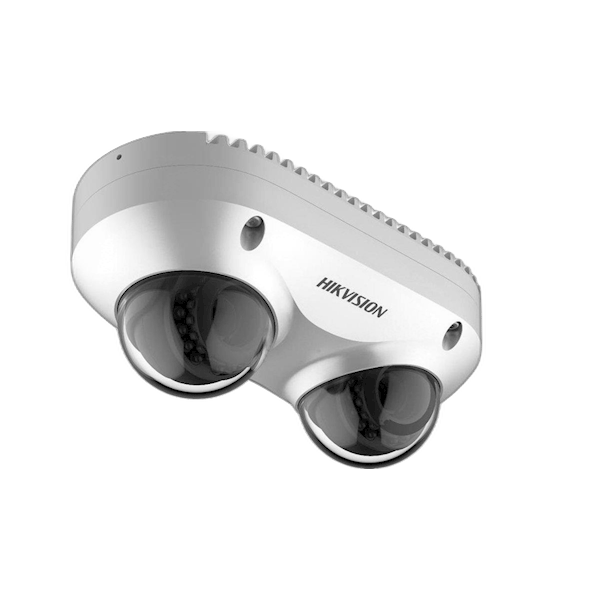

DS-2CD6D52G0-IHS(2.8MM), Duale camera 5MP PanoVu

• 1 / 2,7 "CMOS met progressieve scan
• Dubbele lens, dubbele CPU
• Flexibele lens: P: -90 tot 90 °; T: 0 tot 60 ° (2,8 mm), 0 tot 70 ° (4/6 mm); R: 0 tot 355 °
• H.265, H.265 +, H.264, H.264 +
• 2560 × 1920 bij 30 fps
• 120dB WDR
• Ingebouwde micro SD / SDHC / SDXC-kaartsleuf, tot 256 GB
• IP67, IK10

Technische specificaties

CameraImage Sensor 1/2.7" Progressive Scan CMOSMin. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON),B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IRShutter Speed 1s to 1/100,000 sSlow Shutter YesWide Dynamic Range 120dBDay & Night ICR CutLinkage Method Upload to FTP/NAS/memory card, notify surveillance center, send emailAngle Adjustment P: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355°LensLens Type & FOV2.8mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° 4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104° 6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°Aperture F1.6Lens Mount M12IlluminatorIR Range Up to 10mWavelength 850nmSmart Supplement Light YesVideoMax. Resolution 2560 × 1920Main Stream50Hz: 25fps ((2560 × 1920, 2048 × 1536);60Hz: 30fps (2560 × 1920, 2048 × 1536)Sub Stream50Hz: 25fps (640 × 480, 704 × 576);60Hz: 30fps (640 × 480, 704 × 480)Third Stream50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576);60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480)Video Compression H.265/H.264/MJPEGVideo Bit Rate 32 Kbps to 16 MbpsH.264 Type Baseline Profile/Main Profile/High ProfileH.265 Type Main ProfileSpecifications H.264+ Main Stream supportsH.265+ Main Stream supportsBit Rate Control CBR/VBRStream Type Main stream/Sub-stream/Third streamScalable Video Coding (SVC) H.265 and H.264 supportRegion of Interest (ROI) 4 fixed regions for each streamAudio (-S)Environment Noise Filtering YesAudio Sampling Rate 8 kHz/16 kHz/32kHz/44.1kHz/48kHzAudio Compression G.711/G.722.1/G.726/MP2L2/PCMAudio Bit Rate64Kbps (G.711ulaw), 64Kbps (G.711alaw), 16Kbps(G.722.1), 16Kbps(G.726),32-160Kbps (MP2L2), 250Kbps(PCM)Audio Type StereoNetworkSimultaneous Live View Up to 20 channelsAPI ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDKProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLSSmooth Streaming YesUser/HostUp to 32 users3 levels: Administrator, Operator and UserSecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2Network Storage NAS (NFS, SMB/CIFS)Client iVMS-4200, Hik-ConnectWeb BrowserPlug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+ImageDay/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In (-S)Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp formatImage Enhancement BLC, HLC, Defog, EIS, 3D DNRImage Parameters Switch YesImage SettingsSaturation, brightness, contrast, sharpness, white balance adjustable by client software or web browserInterfaceAlarm -S: 1 input, 1 output (max. 36 VDC, 30mA)AudioWithout -S: 2 built-in mics -S: 2 built-in mics, 1 line in, 1 line outRS-485 -S: 1 RS-485 interface, half duplexOn-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GBReset Reset via reset button on camera body, web browser and client softwareCommunication Interface 1 RJ45 10M/100M self-adaptive Ethernet portHeater YesSmart Feature-SetSmart Event NoIntelligent (Traditional Algorithm)Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)GeneralOnline Upgrade YesFirmware Version V5.5.94Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)General Function Anti- flicker, heartbeat, mirror, privacy masksStorage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)Startup and Operating Conditions-40° to 60°, humidity 95% or less (non-condensing)Power Supply 12 VDC, POE (802.3af)Power Consumption and Current12VDC, 0.9A, max. 11 W POE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 11 WPower Interface Φ5.5 mm coaxial power plugMaterial MetalCamera Dimension 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")Package Dimension 227 × 172 × 125 mm (8.9" × 6.8" × 4.9")Camera Weight 770g (1.7 lb.)With Package Weight 1053g (2.3 lb.)ApprovalClass Class BProtection Ingress protection: IP67, IK10EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
