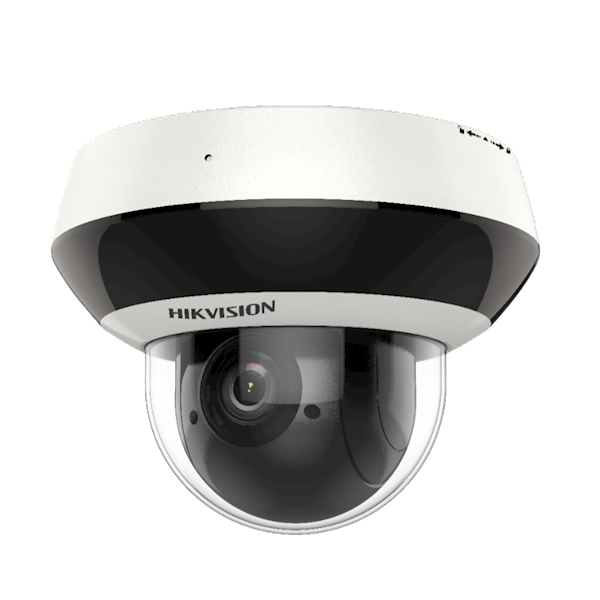

DS-2DE2A404IW-DE3(S6), 4MP, 4x zoom, 20m IR, WDR, Ultra Low Light

• 1/3" progressive scan CMOS
• Tot 2560 × 1440@25fps resolutie
• Min. verlichting: Kleur: 0.005 Lux @ (F1.6, AGC ON) B / W: 0,001 Lux @ (F1.6, AGC ON) 0 Lux met IR
• 4× optische zoom, 16× digitale zoom
• 120 dB WDR, 3D DNR, HLC, EIS, regionaal, belichting, regionale focus
• 12 VDC & PoE
• Tot 20m IR-afstand
• Ingebouwde microfoon
• IK10, IP66
• Ondersteuning van H.265 + / H.265-videocompressie

Technische specificaties

CameraImage Sensor1/2.8" Progressive Scan CMOSMax. Resolution2560 × 1440Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IRShutter Speed1/1 s to 1/30,000 sDay & NightIR cut filterZoom4x optical, 16x digitalSlow ShutterYesLensFocal Length2.8 to 12 mmFOVHorizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32°FocusAuto, semi-auto, manualApertureMax. F1.5Zoom SpeedApprox. 2 sIlluminatorSupplement Light TypeIRSupplement Light RangeIR Distance: up to 20 mSmart Supplement LightYesIR Wavelength850 nmPTZMovement Range (Pan)0° to 355°Movement Range (Tilt)0° to 90°Pan SpeedPan speed: configurable from 0.1° to 100°/s; preset speed: 100°/sTilt SpeedTilt speed: configurable from 0.1° to 100°/s, preset speed 100°/sProportional ZoomYesPresets300Preset FreezingYesPark ActionPreset3D PositioningYesPTZ Status DisplayYesScheduled TaskPreset, dome reboot, dome adjustPower-Off MemoryYesVideoMain Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)Third Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)Video CompressionMain stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEGH.264 TypeBaseline Profile/Main Profile/High ProfileH.265 TypeMain profileScalable Video Coding (SVC)H.264 and H.265 encodingRegion Of Interest (ROI)8 fixed regions for each streamAudioAudio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AACAudio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHzEnvironment Noise FilteringYesNetworkProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, BonjourSimultaneous Live ViewUp to 20 channelsAPIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUPUser/HostUp to 32 users; 3 user levels: administrator, operator, and userSecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)ClientiVMS-4200, HikCentral Pro, Hik-ConnectWeb BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 11+ImageImage Parameters SwitchYesImage SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browserDay/Night SwitchDay, Night, Auto, ScheduleWide Dynamic Range (WDR)120 dBSNR>52dBDefogDigital DefogImage StabilizationNoImage EnhancementBLC, HLC, 3D DNRPrivacy Mask24 programmable polygon privacy masks, mask color or mosaic configurableRegional FocusYesRegional ExposureYesInterfaceEthernet Interface1 RJ45 10M/100M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GBBuilt-In Microphone1 built-in microphone, picking up sounds in the radius up to 5 metersAudio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;1 output (line out), line level, output impedance: 600 ΩEventBasic EventMotion detection, video tampering alarm, exceptionSmart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detectionAlarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)GeneralPower12 VDC, Max. 9.2 W; PoE (802.3af)DimensionØ 130.7 mm ×101.7 mm (Ø 5.15" × 4.00")Approx. 530 g (1.17 lb.)Operating Condition-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)General FunctionMirror, password protectionApprovalProtectionIP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
