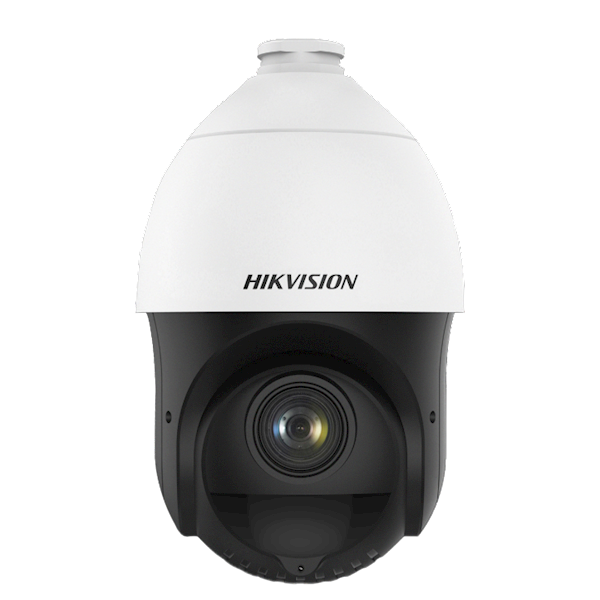

DS-2DE4225IW-DE T5, 2MP, 25x zoom, 100m IR, WDR, Ultra Low Light, AcuSense

• Toepassing: PTZ Speeddome met AcuSense techniek.
• 1/2.8 "Progressive Scan CMOS
• Hoge beeldkwaliteit met een resolutie van 2MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• 25× optische zoom, 16× digitale zoom
• WDR, HLC, BLC, 3D DNR, Defog, Regionale blootstelling, Regionale focus
• Tot 100m IR-afstand
• Nauwkeurige classificatie en alarm van mens en voertuig op basis van een diepgaand leer-algoritme
• Gezichtsopname: maximaal 5 gezichten tegelijkertijd vastgelegd

Technische specificaties

Camera Module
Image Sensor1/2.8" progressive scan CMOS
Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.6,AGC ON); B/W: 0.001Lux @ (F1.6,AGC ON)
Shutter Speed1/1s-1/30000s
Slow Shutteryes
Focus;semi-auto;manual;auto
Day & NightICR
Day/Night Switchday, night, auto, scheduled-switch
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
Defogyes
EISyes
Regional Exposureyes
Regional Focusyes
Image Settingsbrightness;contrast;sharpness;saturation
White Balanceauto;ATW;sodium lamp;indoor;fluorescent lamp;outdoor;MWB;Locked WB;Locked WB
Digital Zoom16x
Optical Zoom25x
Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
SNR>52dB

Lens

Focal Length4.8 mm to 120 mm, 25× Optical
Zoom Speedapprox. 3.6 s
FOV

Horizontal field of view: 57.6° to 2.5° (wide-tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)

ApertureF1.6

PTZ

Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90°(auto flip)
Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-Off Memoryyes
Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output

Video

Max. Resolution1920 × 1080
Stream Typemain stream;sub-stream;third stream
Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video CompressionH.265;H.264;MJPEG
Video Bit Rate32kbps to 16384kbps
H.264 Type;;;baseline profile;main profile;high profile
H.265 Type;main profile
H.264+yes
H.265+yes
SVCyes
ROIdynamic face tracking;;main stream, sub-stream and third stream respectively support eight fixed areas;fixed region

Audio

Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filteringyes

Smart Features

Face Captureyes
Basic Eventaudio exception;motion detection;video tampering alarm;exception
Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
Smart RecordANR;Dual-VCA
Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

Network

Network StorageNAS (NFS, SMB/ CIFS);ANR
ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP;Hik-Connect
Simultaneous Live View20
User/Host32
Smooth Streamingyes
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200;Hik-Connect
Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Interface

Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port
On-Board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB
Alarm Input1 alarm input
Alarm Output1 alarm output
Audio Input;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

Supplement Light

IR Distance100 m

General

Power12 VDC,PoE(802.3at)
Power Consumption And CurrentMax. 24 W, including max. 9 W for supplement light
Operating Conditionshumidity lower than 90%RH ;temperature: -30? to 65? (-22°F to 149°F)
Resetyes
MaterialADC 12, PC, PC+10% GF
DimensionsΦ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
WeightApprox. 2 kg (4.41 lb)

Approval

Protection;IP66;4000V Lightning Protection, Surge Protection and Voltage Transient Protection
