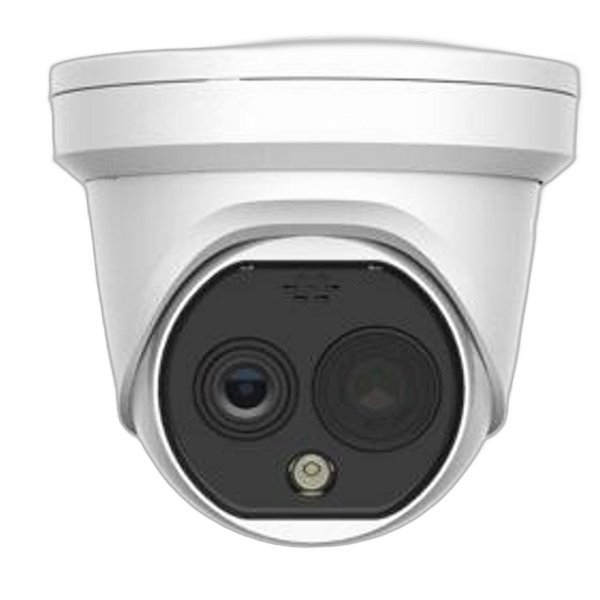

DS-2TD1228T-2/QA(B) Thermografische en optische Bi-Spectrum Turret 2 mm

• 256 × 192 resolutie, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
• Analyse van video-inhoud: classificatie voertuig/mens
• Temperatuuruitzonderingsalarm voor brandpreventie, -20°C tot 550°C (-4°F tot 1.022°F), Max (± 2°C, ± 2%)
• Algoritme voor rookdetectie
• Beeldverwerkingstechnologie: lineair, histogram, zelfaanpassende thermische AGC-modus, DDE, 3D DNR
• Hoogwaardige detector met 10 jaar garantie

Technische specificaties

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 x 192
Pixel Pitch12 μm
Spectral Range8 μm to 14 μm
NETD≤ 40 mK (@25° C,F# = 1.0)
Focal Length 2.1 mm
IFOV 5.71 mrad
Aperture F1.0
Field Of View 90.0° × 65.4° (H × V)
Min. Focusing Distance 0.1 m
Digital Zoom ×2, ×4

Optical Module

Image Sensor1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0176Lux @(F2.25,AGC ON) ,0 Lux with IR
Field Of View 117.8° × 70.4° (H × V)
Focal Length 2.2 mm
Shutter Speed1 s to 1/100,000 s
White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night ModeIR Cut Filter with Auto Switch
WDR 120 dB
Aperture F 2.25

Image Effect

Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Illuminator

IR DistanceUp to 15 m
IR Intensity And AngleAutomatically adjusted

Audible And Visual Alarm

White Light RangeUp to 30 m
Visual AlarmYes. White light alarm with adjustable flashing frequencies
Audio Alarm
Yes, for three types of audible alarm (VCA and Temperature Exception)
3 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)


Smart Function

VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range-20°C to 550°C (-4°F to 1022°F);
Temperature AccuracyMax (±2°C, ±2 %)

Video And Audio

Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)

Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG

Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live ViewUp to 20 channels
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClientiVMS-4200, Hik-Connect

Interface

Alarm Input1, alarm input (0-5 VDC)
Alarm Output1, alarm output (alarm response actions configurable)
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Audio OutputLinear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)


General

Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)

Power Consumption
12 VDC ± 25%: 0.5 A, Max 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W

Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less

Protection Level
IP66 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection

Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
Weight940 g (2.07 lb)
