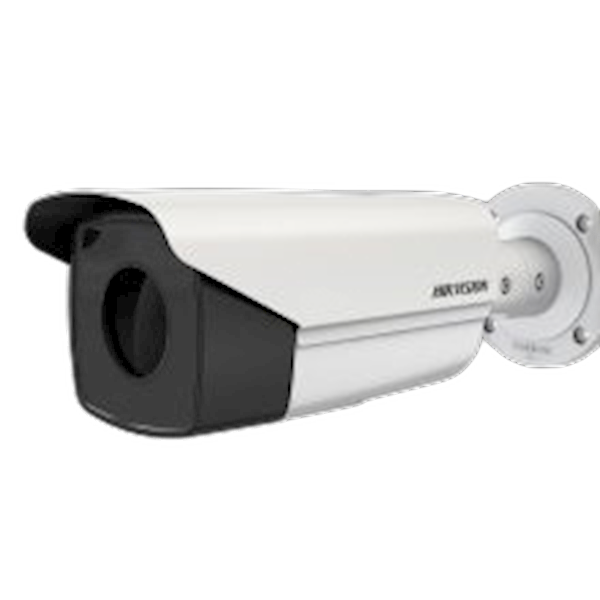

DS-2TD2136-15, 15mm thermische lens, 384*288 resolutie

Technische specificaties

Thermal Module Image sensor:   Vanadium Oxide Uncooled Focal Plane Arrays Max. Resolution:   384 × 288 Detector Pitch:   17μm Response Wavebond:   8μm to 14μm NETD:   < 40mk (@25°C,F# Lens (focal length):   7 mm/10 mm/15 mm/25 mm/35 mm MRAD:   2.43 mrad/1.70 mrad/1.13 mrad/0.68 mrad/0.49 mrad Field of View:   60° × 43.8°/36° × 27°/24.55° × 18.54°/14.88° × 11.19°/10.66° × 8.002° Min. Focusing Distance:   0.8 m/1 m/2.5 m/13 m/40 m F number:   1.0 Smart Function VCA:   Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA rules. Temperature Measurement:   Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line) Temperature Range:   -20 °C to 150 °C (-4 °C to 302 °F) Temperature Accuracy:   ±8 °C (14.4 °F) Fire Detection:   Support 10 fire points Network Main Stream:   50fps(384 × 288) Sub Stream:   50fps(384 × 288) Third Stream:   50fps(384 × 288) Video Compression:   H.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+ Audio Compression:   G .711u/G.711a/G.722.1/MP2L2/G.726/PCM Protocols:   IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour Simultaneous live view:   Up to 20-ch User/Host Level:   Up to 32 users, 3 levels: Administrator, Operator, User Security Measures:   User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering Integration Alarm Input:   2-ch Input (0-5V DC) Alarm Output:   2-ch Relay Output, Support Alarm Linkage Alarm Action:   Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage Audio Input:   1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10% Audio Output:   Linear Level; Impedance: 600 Ω Communication Interface:   Built-in RJ45; 10M/100M Ethernet Interface Ethernet:   1 RJ45 10M/100M Self-adaptive Ethernet interface Onboard Storage:   Built-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording Analog Video Output:   1.0V [p-p]/75Ω, PAL/NTSC/BNC API:   Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform Client:   iVMS-4200 Web Browser:   IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages General Menu:   English Power:   POE+ (802.3at), 24VAC, 12VDC/3A, 8W (20W with De-icing Heater On) Working Temperature/ Humidity:   From -40 °C to 65 °C (-40 °F to 149 °F); Humidity: 90% or Less Protection Level:   IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Dimensions:   314mm × 104mm × 292.7mm (12.36″ × 4.09″ × 11.52″) Weight:   2kg (4.41lb)

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
