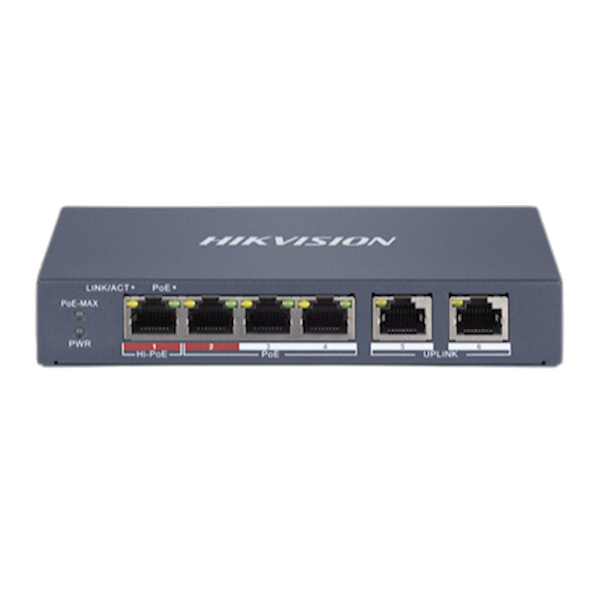

DS-3E1106HP-EI 4 poorten LAN POE 100Mbps smart switch

• 4× 100Mbps PoE RJ45-poorten, 2× 100Mbps netwerk RJ45-poorten
• IEEE 802.3at/af/bt-standaard normering m.b.t. dePoE-poorten
• Beheer van netwerktopologie en alarm push
• 6 KV-overspanningsbeveiliging voor PoE-poorten
• Tot 300m langeafstandstransmissie
• AF/AT-camera kan tot 300m bereiken in speciale modus

Technische specificaties

Technische specificaties:Network Parameters Port Number: 4× 10/100Mbps PoE ports, and 2× 10/100Mbps RJ45 ports Forwarding Mode: Store-and-forward switching Working Mode: Standard mode (default) and Extend mode Standard: IEEE 802.3, IEEE 802.3u, and IEEE 802.3x MAC Address Table: 2K Internal Cache: 768 Kbits Switching Capacity: 1.2 Gbps Packet Forwarding Rate: 0.8928 Mpps High Priority Ports: Ports 1 to 2 PoE Power Supply PoE Standard: Ports 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt and Ports 2 to 4: IEEE 802.3af, IEEE 802.3at PoE Power Pin: End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port: Hi-PoE:Port 1 (PoE: Ports 2 to 4) Max. Port Power: Port 1:60W, Ports 2 to 4:30W PoE Power Budget: 60 W Software Function Port Configuration: Support rate, flow control, and switch configuration Device Maintenance: Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters General Dimension (W × H × D): 145mm × 25.6mm × 68.45mm (5.7" × 1" × 2.69") Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) Installation Mode: Wall mounting, desk mounting Gross Weight: 0.645 kg (1.42 lb) Net Weight: 0.245 kg (0.54 lb) Power Consumption In Idle: 2W Shell: Metal material, IP40 Operating Temperature: -10°C to 55°C (14°F to 131°F) Operating Humidity: 5% to 95% (no condensation) Power Supply: 48 VDC, 1.35 A Max. Power Consumption: 65W Relative Humidity: 5% to 95% (no condensation) Approval EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
