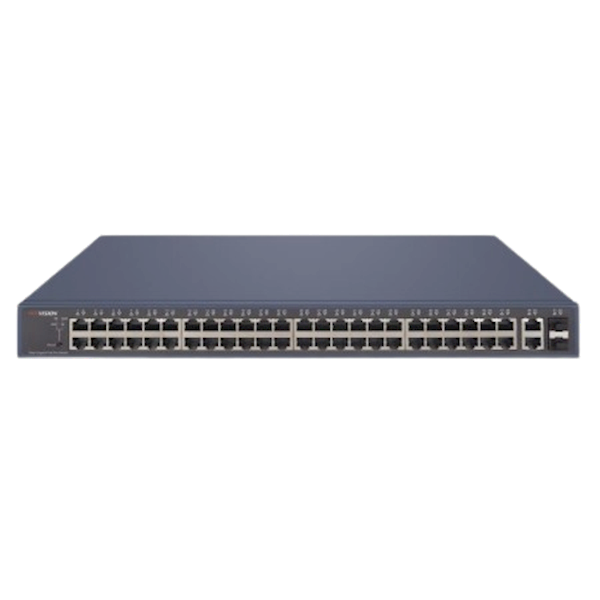

DS-3E1552P-SI 48 poorten LAN POE Gigabit smart switch

• IEEE 802.3af/at PoE-standaard
• 48 x Gigabit PoE-poorten, 2 × gigabit RJ45, 2 x optische glasvezelpoorten
• Totaal PoE-stroombudget 470W
• PoE-watchdog, STP/RSTP, VLAN, SNMP, QoS
• 104 Gbps schakelcapaciteit
• 16K MAC-adresinvoer

Technische specificaties

Network Parameters Ports 48 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port,2 × 1 Gigabit RJ45 port Port Type RJ45 port,full duplex,MDIMDI-X adaptive Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z Forwarding Mode Store-and-forward switching Working Mode Standard mode (default),Extend mode MAC Address Table 16 K Switching Capacity 104 Gbps Packet Forwarding Rate 77.376 Mpps Internal Cache12 Mbits PoE Power Supply PoE StandardIEEE 802.3af,IEEE 802.3at PoE Power PinEnd-span: 1/2/7/8(-),3/4/5/6(+) PoE PortPoE: Ports 1 to 48 Max. Port Power30 W PoE Power Budget470 W Dialing Function Long RangeUp to 300 m transmission Software Function Device Maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization. Port Configuration Support port rate configuration, flow control, and ports enabling. PoE Configuration PoE watchdog: Ports 1 to 48 auto detect and restart the cameras that do not respond. PoE enabling: supported Port Rate-Limiting Rate-limiting for ingress and egress ports Storm Control Storm control of unknown unicast, multicast, and broadcast Port Mirroring Supported Link Aggregation Support static link aggregation. Port Isolation Ports in an isolation group cannot communicate with each other. Qo SWRR and SP scheduling and port priority VLAN Supported STPSTP and RSTP SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces LLDPLLDP supported for port configuration, global configuration, and neighbor discovery DHCPDHCP supported General Shell Metal material Net Weight 4.35 kg (9.59 lb) Gross Weight 4.5 kg (9.92 lb) Dimensions (W × H × D)440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'') Operating Temperature 0 °C to 45 °C (32 °F to 113 °F) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 220 VAC, 50/60 Hz Max. Power Consumption 500 W Power Consumption In Idle 30 W Approval EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.

Voor 17:00 besteld, dezelfde werkdag verzonden. Levering doorgaans binnen 1-2 werkdagen. Kies bij het afrekenen voor bezorgen of installatie op locatie.
