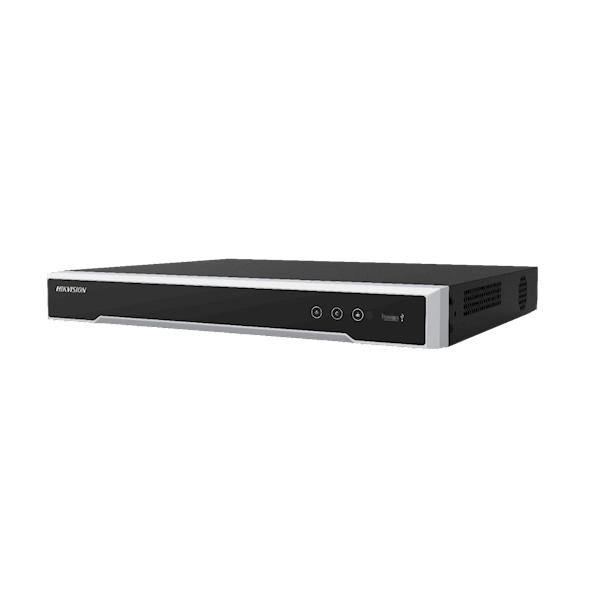

DS-7608NI-K2/4G, 8 Kanaals, 2 x Bay HDD, 4G, "K-Serie"

Technische specificaties

System Parameter Video input channel 8 Video resolution 8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Outgoing bandwidth 80 Mbps Incoming bandwidth 80 Mbps Video parameter Video output1-ch HDMI, 1-ch VGA Video output modeHDMI/VGA independent output HDMI output4K(3840*2160)/30Hz,1920*1080/60Hz,1600*1200/60Hz,1280*1024/60Hz,1280*720/60Hz,1024*768/60Hz VGA output 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz,1024*768/60Hz Video decoding format H.265;H.265+;H.264;H.264+;MPEG4 Aux port window division 1/4/6/8/9 Decoding capability 4*1080P Live view window division 1/4/6/8/9 Synchronous playback 8 Audio parameter Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio decoding format G.711ulaw;G.711alaw;G.722;G.726;AAC;MP2L2 Audio output 1-ch, RCA (Linear, 1 KΩ) HDD management HDD No. 2 SATA interfaces Max. capacity per HDD Up to 6 TB capacity for each disk Recording management Playback mode Normal/Smart, Event, Tag, Eternal File Network management Remote connections 64 Protocol HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF, PANASONIC, PELCO, RTSP, SAMSUNG, SANYO, SONY, VIVOTEK, ZAVIO Network protocol IPv6, HTTP, HTTPS, UPnP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS External port Network interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Alarm input 4 Alarm output 1 Wireless transmission UIM card slot1, on rear panel SMA interface1 SMA interface, antenna module cable length: 3 m Wireless standard GSM/EDGE:B3/B8WCDMA:B1/B5/B8LTE-FDD:B1/B3/B5/B7/B8/B20LTE-TDD:B38/B40/B41 General standard Power 12 VDC, 3 A Consumption (without HDD) ≤15W Working temperature -10?~+55? Working humidity 10%~90% Chassis 1U Dimension 380 × 315 × 52 mm (15.0 × 12.4 × 2.0 inch) Weight (without HDD) ≤1Kg

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
