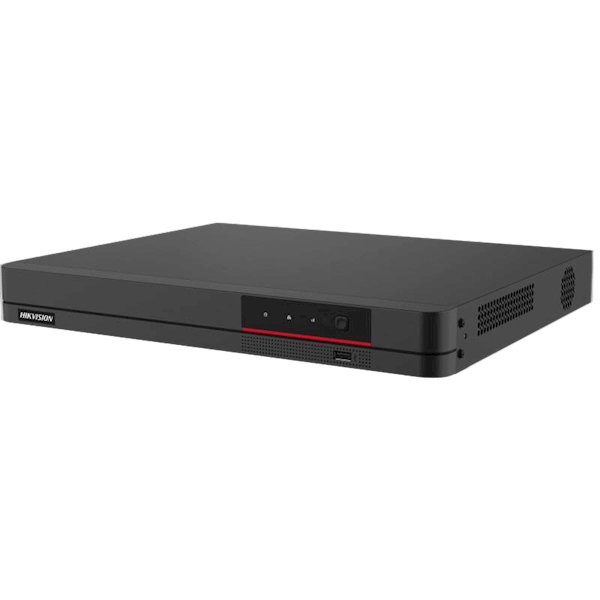

DS-7608NI-K2/8P/4G(C), 8-kanaals 1U 8 POE 4G NVR

• Tot 8-kanaals IP-camera-ingangen, plug & play met 8 power-over-Ethernet (PoE)-interfaces
• Tot 80 Mbps inkomende bandbreedte en 80 Mbps uitgaande bandbreedte
• H.265+/H.265/H.264+/H.264 videocompressie
• Tot 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoderingscapaciteit
• 4G draadloos netwerk
• Ondersteunend netwerk 'keep alive', gegevensbewaking, real-time weergave van gebruikte gegevens, melding van gegevensgebruik

Technische specificaties

Smart Analysis Motion Detection 2.0Human/Vehicle Analysis 4-ch Video And Audio IP Video Input8-ch Incoming Bandwidth80 Mbps Outgoing Bandwidth80 Mbps HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output ModeHDMI/VGA simultaneous output Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) Decoding Decoding FormatH.265+/H.265/H.264+/H.264 Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback8-ch Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,AAC,MP2L2 Network Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Remote Connection32 PoE Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power≤ 80 W StandardIEEE 802.3 af/at Wireless Parameter SIM/UIM Card Slot1 micro SIM card slot, on rear panel SMA Antenna Interface 1 4G interface, antenna module cable length: 3 m 1 ANT interface for GPS antenna (GPS antenna is optional) Wireless Standard  GSM/EDGE: 850/900/1800MHz WCDMA: B1/B5/B8 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 Auxiliary Interface SATA2 SATA interfaces Capacity Up to 8 TB capacity for each disk USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 General Power Supply48 VDC, 2.5 A Consumption≤ 15 W (without HDD and PoE off) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10% to 90% Dimension (W × D × H)385 × 315 × 52 mm (15.2" × 12.4" × 2.0") Weight≤ 3 kg (without HDD, 6.6 lb.)
