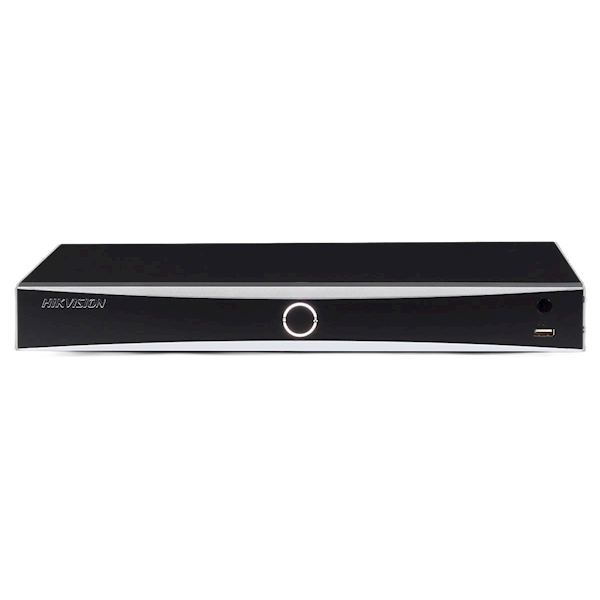

DS-7608NXI-I2/S(E), Hikvision AcuSense NVR 8-Ch. HDMI/VGA

• H.265+-compressie vermindert de opslagruimte effectief tot 75%
• Full channel IP-camera verbinding
• Adopteer stream via TLS-coderingstechnologie die een veiligere stream-transmissieservice biedt
• Ondersteuning dubbele verificatie voor afspelen en downloaden download
• H.265+/H.265/H.264+/H.264 videoformaten
• Intelligente analyse op basis van deep learning-algoritme
• Tot 4-kanaals perimeterbeveiliging
• Tot 1-kanaals gezichtsherkenning met videostream
• Tot 4-kanaals gezichtsherkenning metgezichtsfoto
• Tot 8-kanaals IP-camera-ingangen
• Geen POE ondersteuning

Technische specificaties

Algemene specificaties:Facial RecognitionFace Picture Library: up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)Face Picture Comparison: 4-ch face picture comparison alarmFacial Detection And Analytics: Face picture comparison, human face capture, face picture searchFacial Detection And Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)Perimeter ProtectionHuman/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarmVideo And AudioIP Video Input: 8Incoming Bandwidth: 80 MbpsOutgoing Bandwidth: 256 MbpsHDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVideo Output Mode: HDMI/VGA independent outputCVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480Audio Output: 1-ch, RCA (Linear, 1 KΩ)Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)DecodingDecoding Format: H.265,H.265+,H.264,H.264+,MPEG4Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFPlayback Mode: Normal/Smart, Event, Tag, Eternal FileLive View Window Division: 1/4/6/8/9Aux Port Window Division: 1/4/6/8/9Audio Compression: G.711ulaw,G.711alaw,G.722,G.726,MP2L2NetworkNetwork Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaceAuxiliary InterfaceSATA: 2 SATA interfacesCapacity: Up to 8 TB capacity for each diskSerial Interface: RS-485 (half-duplex), RS-232, KeyboardAlarm In/Out: 4/1USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0GeneralPower Supply: ≤ 40 WConsumption: ≤ 15WWorking Temperature: -10?~+55?Working Humidity: 10%~90%Chassis: 1UDimension (W × D × H): 385 × 315 ×52 mmWeight: ≤ 1.6 kg

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
