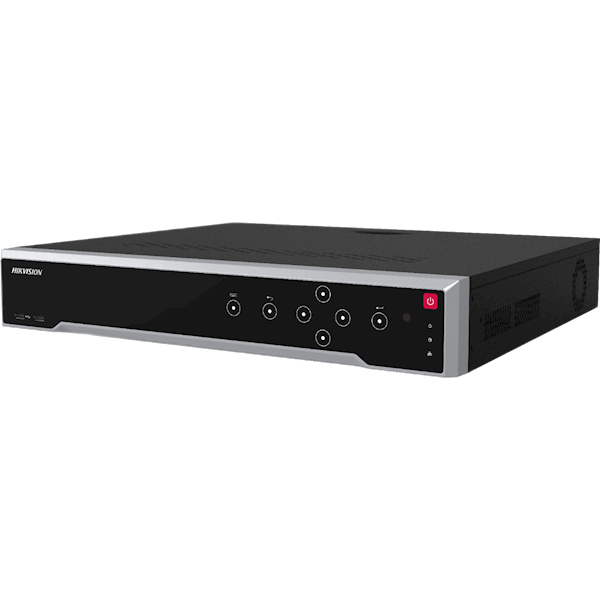

DS-7732NI-M4, 32 Kanaals, 4 x Bay HDD, "M-serie", 8K NVR

• Tot 32-kanaals IP-camera-ingangen
• H.265+/H.265/H.264+/H.264 videoformaten
• Tot 2-kan@32 MP of 4-kan@12 MP of 8-kan@8 MP of 16-kan@4 MP decoderingscapaciteit
• Tot 320 Mbps inkomende bandbreedte

Technische specificaties

Video And AudioIP Video Input: 32-ch Up to 32 MP resolution*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.NetworkIncoming Bandwidth: 320 MbpsOutgoing Bandwidth: 400 MbpsHDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzHDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVideo Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent outputCVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480Audio Output: 1-ch, RCA (Linear, 1 KΩ)Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)DecodingDecoding Format: H.265+/H.265/H.264+/H.264Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.Synchronous Playback: 16-chDecoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)Dual-Stream Recording: SupportStream Type: Video, Video & AudioAudio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2NetworkRemote Connection: 128Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPSNetwork Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfacesRAID RAIDType: N/A Auxiliary InterfaceESATA: 1 eSATA interfaceSATA: 4 SATA interfacesCapacity: Up to 14 TB capacity for each HDDSerial Interface: 2 RS-485 (half-duplex), 1 RS-232Alarm In/Out: 16/9USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.DC 12V: 12 VDC, 1 A power outputGeneralPower Supply: 100 to 240 VAC, 50 to 60 HzConsumption: ≤ 15 W (without HDD )Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)Working Humidity: 10% to 90%Chassis: 19-inch rack-mounted 1.5U chassisDimension: (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")Weight: ≤ 5 kg (without HDD, 11 lb.)CertificationFCC: Part 15 Subpart B, ANSI C63.4-2014CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.

Voor 17:00 besteld, dezelfde werkdag verzonden. Levering doorgaans binnen 1-2 werkdagen. Kies bij het afrekenen voor bezorgen of installatie op locatie.
