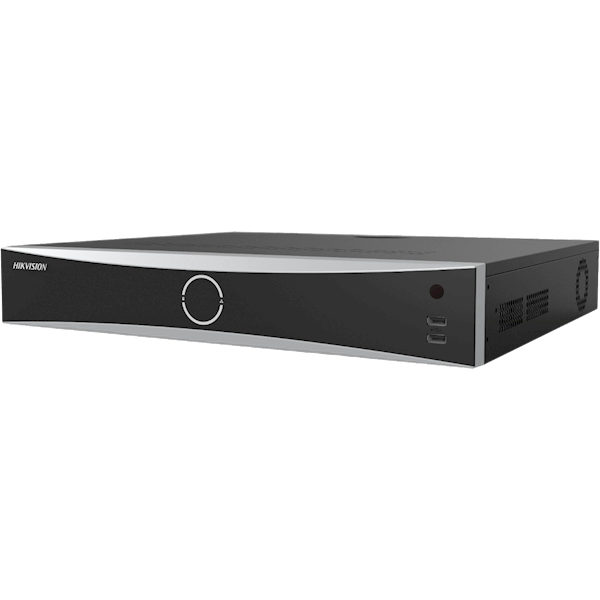

DS-7732NXI-I4/S (E), 32 Kanaals, 4 x Bay HDD, AcuSense, "I-Serie"

• H.265+/H.265/H.264+/H.264 videoformaten
• Intelligente analyse op basis van deep learning-algoritme
• Tot 4-kanaals perimeterbeveiliging
• Tot 1-kanaals gezichtsherkenning met videostream
• Tot 4-kanaals gezichtsherkenning met gezichtsfoto
• Tot 32-kanaals IP-camera-ingangen
• Geen POE ondersteuning

Technische specificaties

Facial Recognition Facial Detection And Analytics Face picture comparison, human face capture, face picture search Face Picture Library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) Face Picture Comparison 4-ch face picture comparison alarm Facial Detection And Analytics Performance 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) Motion Detection 2.0 Human/Vehicle Analysis 32-ch Perimeter Protection Human/Vehicle Analysis Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total Video And Audio IP Video Input 32-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Incoming Bandwidth 256 Mbps Outgoing Bandwidth 256 Mbps HDMI 1 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) Decoding Decoding Format 265+/H.265/H.264+/H.264/MPEG4 Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Playback Mode Normal/Smart, Event, Tag, Eternal File Synchronous Playback 16-ch Live View Window Division 1/2/4/6/8/9/16/25/32/36 Aux Port Window Division 1/2/4/6/8/9/16/25/32/36 Decoding Capability 16-ch @ 1080p (30 fps) Dual-Stream Recording Support Stream Type Video, Video & Audio Audio Compression 711ulaw/G.711alaw/G.722/G.726/MP2L2 Network Remote Connection 128 Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Auxiliary Interface Serial Interface RS-485 (half-duplex), RS-232, Keyboard SATA 4 SATA interfaces supporting hot-plug Capacity Up to 10 TB capacity for each disk ESATA1 eSATA interface Alarm In/Out 16/4 USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 General Power Supply 100 to 240 VAC, 50 to 60 Hz Consumption ≤ 30 W (without HDD) Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Chassis 19-inch rack-mounted 1.5U chassis Dimension (W × D × H) 445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0") ≤ 5.6 kg (12.3 lb) Certification FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
