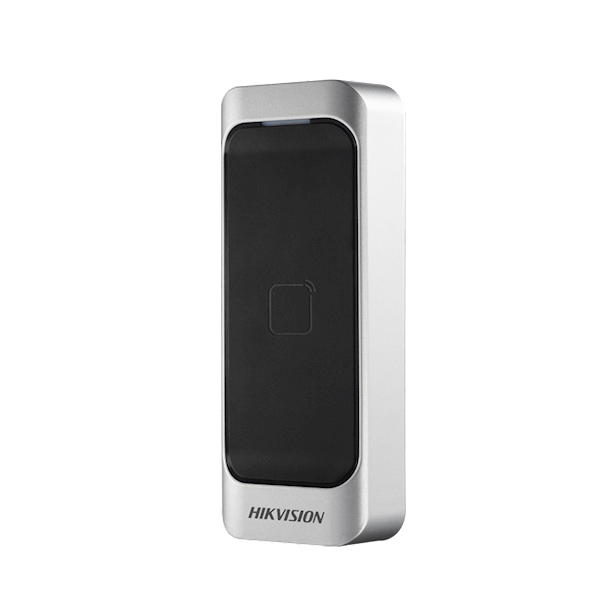

DS-K1107AM, Mifaire kaartlezer

• Equipped with the 32-bit high-speed processor
• RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
• Build-in Mifare card reading module (Frequency: 13.56 MHz)
• Supports tampering alarm
• Built-in buzzer for identifying the reading status
• Online upgrade function
• Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader

Technische specificaties

System Processor32-bit Interface TAMPERSupport RS-485Support WiegandSupport (set via DIP switch) Authentication Card Reading Frequency13.56 MHz Card Reading Distance≤50 mm (≤1.97") General IndicatorPower indicator, status indicator Power Supply12 VDC Power Consumption≤2 W Working Temperature-20 °C to 65 °C (-4 °F to 149 °F) Working Humidity10% to 90% (Non Condensing) Protective LevelIP65 Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' ) InstallationWall Mounting with Screws; Do Not Support Gang Box BuzzerSupport

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
