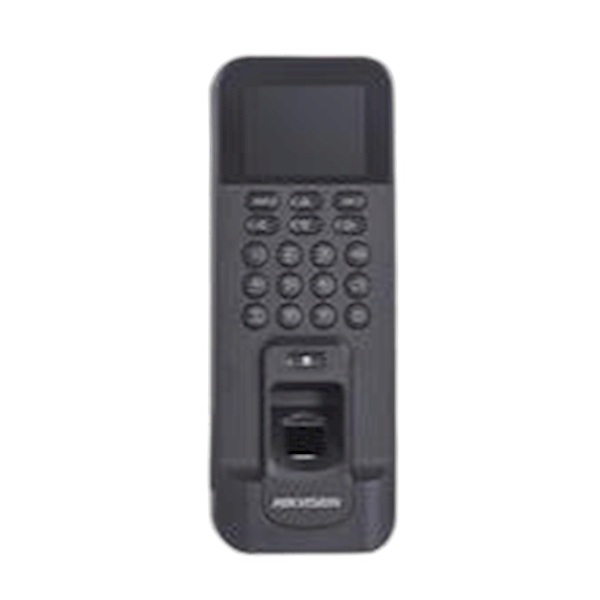

DS-K1T804MF-1 standalone kaartlezer, MiFare, vingerprint lezer

• Leesafstand 5cm
• Geheugen voor 800 vingerprints, max 10 per persoon
• Geheugen voor max 3000 kaarten
• Geheugen voor max 100.000 gebeurtenissen
• Stand-alone, kaarten, vingerprints en codes kunnen lokaal worden geprogrammeerd
• 2.8"LCD scherm
• Werktemperatuur -10°C ~ 55°C
• 205mm x 76.5mm x 37mm
• 12V DC, 2A

Technische specificaties

System ParametersStorage: Up to 3,000 Valid Cards;Up to 100,000 Event Records;Up to 150,000 Attendance RecordsOperation System: LinuxFingerprint Capacity: Up to 3000 Fingerprints; Up to 10 Fingerprints for Each PersonFingerprint Recognition Duration: < 1 sFAR (False Accept Rate): ≤0.001%FRR (False Rejection Rate): ≤0.01%Fingerprint Recognizer: Optical Fingerprint Recognizer ModuleCard Reading Mode: Supports Mifare Card, Including Cards with Special Shapes; Supports Reading Card in Metal EnvironmentCard Reading Distance: 0 to 4.5cmCard Reading Response Duration: < 1 sFingerprint Comparing Mode: 1:1 and 1:N, N=3000Device InterfacesInput Interface: Exit Button × 1, Door Sensor × 1 and Alarm Input × 1Output Interface: Relay (Lock Output) × 1, and Alarm Output × 1Transmission Rate: TCP/IPRS-485: 19200 bps-N-8-1USB Interface: USB2.0, Type ACommunication Interface: TCP/IP, RS-485 (For Secure Door Control Unit)External Card Reader: Standard Wiegand26/34GeneralLCD Screen: 2.4-inch (320×240 LCD-TFT Display Screen)Key Board: Keyboard (Back Light)Audio: 1 Buzzer and 1 LoudspeakerPower Supply: 12 VDC/2 AAppearance Color: Black (Included), Gold (Optional), Silver (Optional), White (Optional)Reset Key: × 1LED Indicator: Power/Status (Red/Green)Water-Proof: IP42Temper-Proof: SupportInstallation: Surface Mounting, Metal Door Mounting, Installation with Gang BoxWorking Temperature: -10° C to 55° C (14° F to 131° F)Working Humidity: 10% to 90% (Non-Condensing)Dimensions (L×W×H): 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
