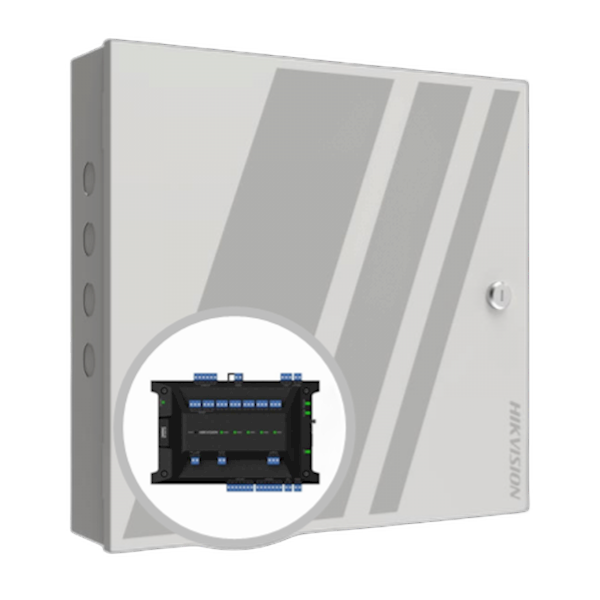

DS-K2701X Hikvision, Toegangscontroller, 1 Deur

• Hikvision access controller including housing
• Supports 1 door control. A maximum of 62 DS-K2M002X access modules can be expanded and a maximum of 125 doors can be controlled
• Downstream RS-485 redundancy wiring design to ensure communication stability. 5-channel downlink RS-485 interface supports two applications: 1. In 4-channel RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-channel RS485 forms 2 groups of dual bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
• Web configuration management. All configurations can be realized via the Internet without software application
• Supports professional access control applications such as multi-door interlock and anti-passback
• Supports backup battery access. Charging and discharging are availableIt has status indicators such as power supply, communication and operation, which is convenient for equipment health detection

Technical specifications

See product datasheet in documentation

Download datasheet
