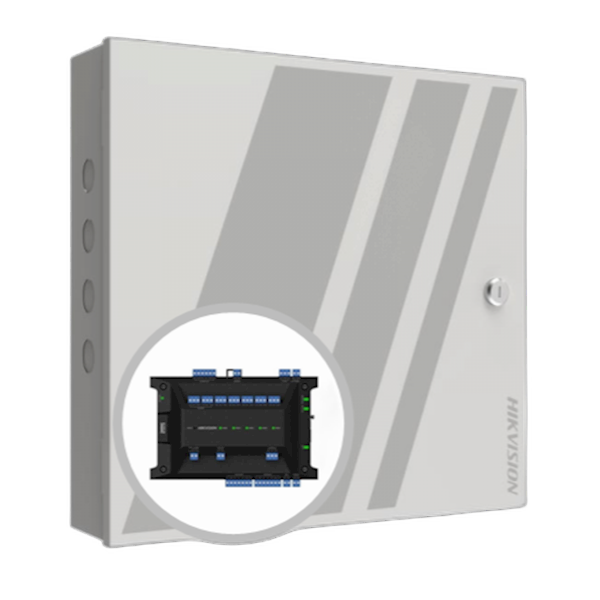

DS-K2708X Hikvision, Toegangscontrole, 8-deurs controller

• Supports 8-door control. It is formed by 2 DS-K2M002X access modules and a 4-door access controller
• Access Controller: Downstream RS-485 redundancy wiring design to ensure communication stability. The 5-channel downlink RS-485 interface supports two applications: 1. In 4-channel RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-channel RS-485 forms 2 groups of dual bus loops with physical isolation. It is recommended that no more than 16 access modules be connected to each loop bus. Access module: Supports 8-channel RS-485 interface for connecting card readers
• Web configuration management. All configurations can be realized through the web without software application
• Supports professional access control applications such as multi-door interlock and anti-passback
• Supports backup battery access. Charging and discharging are available
• It has status indicators such as power supply, communication, and operation, which is convenient for equipment status detection

Technical specifications

See product datasheet at documentation

Download datasheet
