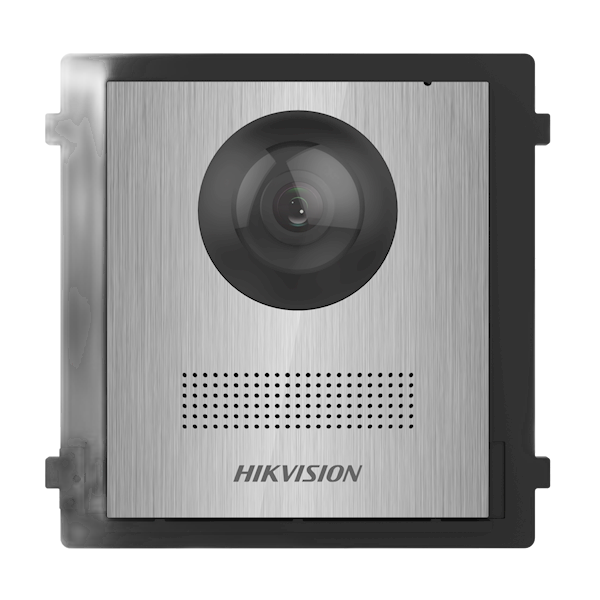

DS-KD8003-IME1/NS(B), IP, Cameramodule, Zonder Beldrukker

• RVS Design
• Enkel cameramodule, zonder beldrukker
• 2MP HD video kwaliteit
• Fisheye lens
• Kijkhoek (FOV) horizontaal van 180°
• H.264 video compressie
• WDR voor tegenlichtcompensatie
• Basis toegangscontrole functionaliteiten
• Ingebouwde microfoon en speaker
• Ruisonderdrukking inclusief echo filtering
• LAN 10/100 Mbps ethernet
• Alarm input/output
• Ondersteuning van maximaal 8 modules
• Voeding via POE of 12V DC
• Stof- en waterbestendig conform IP66
• Kan inbouw als opbouw gemonteerd worden
• Afmetingen: 98mm (hoog) x 99.8mm (breed) x 43.9mm (diep)

Technische specificaties

Video ParametersSupplement Light: IR supplementLens: Low Illumination 2 MP HD IR CameraFOV: Horizontal: 180°, Vertical: 96°Pixel: Main stream : 1920 × 1080, Sub stream : 720 × 480Audio ParametersAudio Quality: Noise suppression and echo cancellationCapacitySub Door Station Capacity: 16Network ParametersCommunication Protocol: TCP/IP, RTSPWired Network: SupportWi-Fi: /Bluetooth: /Device InterfacesNetwork Interface: 1 10/100 Mbps self-adaptive EthernetExit Button: 2Lock Control: 2Door Contact Input: 2Power Interface: 1GeneralButton: /Installation: Flush mounting, surface mountingIndicator: Without package: 415 g, With package: 625 gProtective Level: IP65Working Temperature: -40° C to +55° C(-40° F to 131° F)Working Humidity: 10% to 95%Dimensions: 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")Battery: /Power Supply: IEEE802.3af, standard PoE, 12 VDC, 1 AApplication Environment: OutdoorPower Consumption: ≤10 W
