Hikvision

23% korting

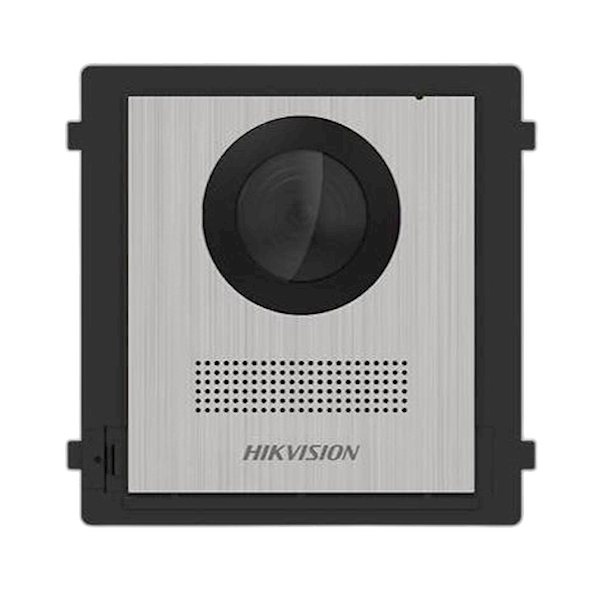

DS-KD8003Y-IME2/NS, 2-Draads Modulaire intercom, cameramodule RVS

€329,10 €427,83

Verzending berekend bij het afrekenen.

Belangrijke kenmerken Modulaire cameramodule, heeft een montagebeugel nodig 2MP HD-camera, fish eye, IR-supplement 2 slotrelais, 4-kanaals alarmingang Video intercom naar binnenpost en hoofdpost WEB-configuratie Uitgangsvermogen voor elektronisch slot, max. 12...
Veilig betalen
Snelle verzending
14 dagen retour
Beschrijving
Belangrijke kenmerken
  • Modulaire cameramodule, heeft een montagebeugel nodig
  • 2MP HD-camera, fish eye, IR-supplement
  • 2 slotrelais, 4-kanaals alarmingang
  • Video intercom naar binnenpost en hoofdpost
  • WEB-configuratie
  • Uitgangsvermogen voor elektronisch slot, max. 12 VDC, 500 mA




Technische specificaties

System parameters Operating system Embedded Linux operation system ROM 32 MB RAM 256 MB CPU Embedded Processor Display parameters Screen size NA Operation method NA Type NA Resolution NA Video parameters Supplement light Low illumination, IR supplement lights Video standard H.264 Lens 1 FOV Horizontal: 146°, Vertical: 82° WDR Support Resolution 2 MP Audio parameters Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio compression standard G.711 U, G.711 A Audio compression bitrate 64 Kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable Capacity Fingerprint capacity / User capacity 2000 Face capacity NA Linked indoor station capacity 500 Event capacity / Sub door station capacity 16 Network parameters Ethernet NA Communication protocol NA Wired network NA Wi-Fi NA Bluetooth NA 3G/4G NA Device interfaces Alarm input 4 (2 exit butttons and 2 door contacts by default) I/O input 4 TAMPER 1 I/O output 2 Exit button 2 (2 for lock control) Door contact input 2 RS-485 1 (1 for Hikvision's sub module communication) Wiegand NA TF card NA Alarm output NA Lock control 2 (2 relay, max to 30 VDC, 2 A) USB NA Power interface 12VDC power output(12 V, 500 mA Max.) Two-wire IP interface NA

Download datasheet

Specificaties
Type
Intercom
Verzorgingsinformatie

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.

Bezorgen en verzenden

Voor 17:00 besteld, dezelfde werkdag verzonden. Levering doorgaans binnen 1-2 werkdagen. Kies bij het afrekenen voor bezorgen of installatie op locatie.
