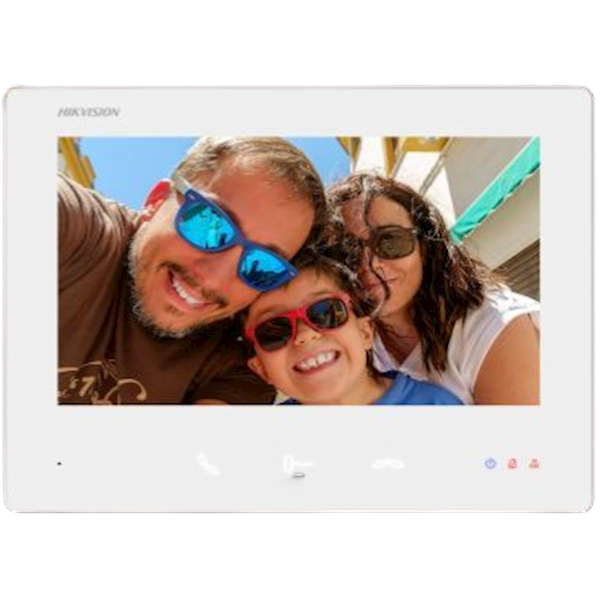

DS-KH7300EY-WTE2/WHITE, 2-draads modulaire intercom, binnenpost (wifi)

• 7-inch touchscreen met 1024x600 hoge resolutie
• 3 aanraakknoppen, vriendelijk voor lichamelijk gehandicapten
• Eenvoudig te gebruiken: DEC-knoppenconfiguratie;
• Eenvoudig te gebruiken: Plug & play, ondersteunt verschillende verbindingstopologieën
• Eenvoudig te gebruiken: ondersteunt Hik-Connect-app (model met W)
• Eenvoudig te gebruiken: meerdere indicatoren: Wi-Fi, aan/uit, dempen, in gebruik
• Gemakkelijk te gebruiken: Max. 4 aangepaste virtuele knoppen
• Bekijk liveweergave van deurstations
• Ondersteuning van professionele studio-/handelsknopfunctie (deuren automatisch openen)
• Ondersteuning verdiepingsoproep

Technische specificaties

System Parameters Operating System Embedded Linux operation system ROM 32 MB RAM 128 MB CPU Embedded processor Display Parameters Screen Size 7-inch Operation Method Capacitive touch screen Type Colorful TFT screen Resolution 1024 × 600 Video Parameters Lens/ FOV/ WDR/ Resolution/ Focal Length/ Audio Parameters Audio Compression Standard G.711 U G.711 A Audio Input 1 Built-in omnidirectional microphone Audio Output 1 Buit-in loudspeaker Audio Compression Bitrate 64 Kps Audio Quality Noise suppression and echo cancellation Volume Adjustment Adjustable Capacity Event Capacity 200 captured pictures (with TF card) Linked Indoor Extensions Capacity 3 Network Parameters Communication Protocol TCP/IP, RTSP Wi-Fi Standard 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n 3G/4G Standard/ Zigbee/ Device Interfaces Alarm Input 1 TAMPER/ RS-485/ USB/ TF Card Max to 128 G, SD 2.0 or lower version Alarm Output DIP Switch5 decimal DIP switch and 4 binary DIP switch Power Supply Input48V,powered by DS-KAD7060EY or DS-KAD7061EY Two-Wire IP Interface2, 1 for input 1 for output General Button 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button(Reset) Installation Surface mounting Indicator 4(Wifi?Power?Mute?In use) Protective Level Working Temperature -10 °C to 50 °C (14 °F to 122 °F) Working Humidity 10% to 90% (no-condensing) Dimensions 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8") Battery Power Supply 48V,Powered by DS-KAD7060EY or DS-KAD7061EY Application Environment Indoor Power Consumption ≤ 5 W Language English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Download datasheet
