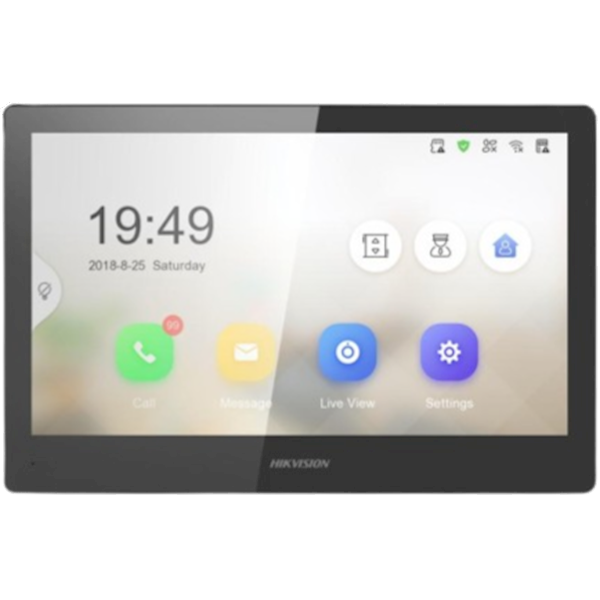

DS-KH8520-WTE1, IP Binnenpost Zwart, 10 inch

• 10.1-inch TFT LCD scherm
• SD kaart wordt ondersteund tot 32GB
• Beeldresolutie van 1024x600
• Touchscreen bediening
• Netwerkconnectie via LAN 10/100Mbps
• RJ45 connector aan onderzijde van de achterkant
• Standaard Wi-Fi 802.11b/g/n (Wi-Fi kwaliteit is lokaal afhankelijk)
• Ingebouwde microfoon en speaker
• Audio met ruisonderdrukking en echo filtering
• Voeding via PoE (IEEE802.3af)/12V DC
• 8x alarm input en 2x alarm output
• Afmetingen: 166mm (hoog) x 254mm (breed) x 14.7mm (diep)

Technische specificaties

System Parameters


Operation System:

Embedded Linux Operation System


Flash:

32MB


Memory:

128MB









Display Parameters


Display Screen:

10.1-inch colorful TFT LCD


Display Resolution:

1024 × 600


Operation Method:

Capacitive touch screen









Audio Parameters


Audio Input:

Built-in Omnidirectional Microphone


Audio Output:

Built-in Loudspeaker


Audio Compression Standard:

G.711 U


Audio Compression Rate:

64 Kbps


Audio Quality:

Noise Suppression and Echo Cancellation









Network Parameters


Wired network:

10/100 Mbps self-adaptive network


Wireless network:

Wi-Fi 802.11b/g/n


Network Protocol:

TCP/IP, SIP, RTSP


Network interface:

1 RJ-45 10/100 Mbps self-adaptive









Device Interfaces


Relay Output:

2


Alarm Input:

8-ch alarm inputs


RS-485:

1


TF Card (micro SD card):

Max to 32 G, SD 2.0 or lower version









General


Power Supply:

IEEE802.3af standard PoE, 12 VDC/1A


Power Consumption:

≤6W


Working Humidity:

10% to 90%


Working Temperature:

-10° C to + 55° C (14° F to 131° F)


Dimensions(L × W × H):

254 mm × 166 mm × 14.7 mm (10.0" ×6.5" × 0.58")
