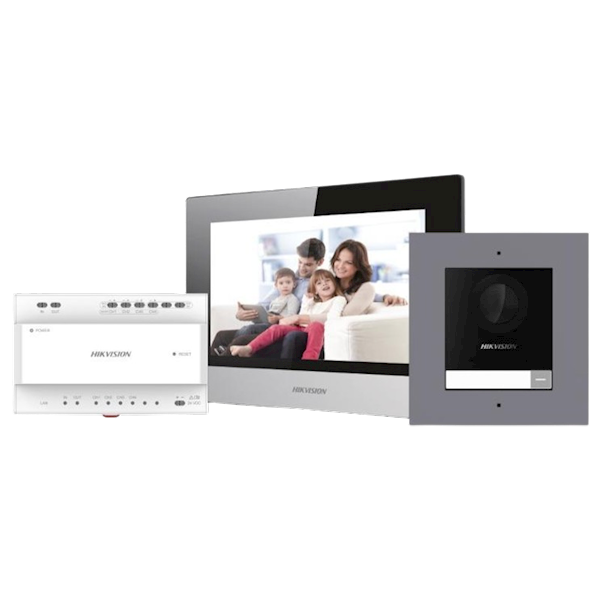

DS-KIS702Y, Hikvision 2-draads modulaire intercomset

• Belangrijk: bij gebruik van intercom set in een 2-draads installatie, lees het artikel hier eerst alvorens te beginnen met de installatie: klik hier voor meer informatie
• 2-draads digitale IP video intercom kit voor villa of huis
• Eén belknop voor eenvoudiger bellen
• Inclusief: DS-KD8003Y-IME2/Surface × 1, DS-KH6320Y-WTE2 × 1, DS-KAD704Y × 1, PSU × 1, 16 GB TF-kaart × 1
• Voedingsadapter inbegrepen in het pakket

Technische specificaties

Door Station/System Parameters ProcessorEmbedded microcontroller Operation SystemEmbedded Linux operation system Operation ModeOne touch key Door Station/Video Parameters Camera 2MP super definition camera   Resolution Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480   Night Vision Support low light and IR light supplement mode Backlight Compensation Support Digital Noise Reduction Support WDR True WDR Field Of View Horizontal 146°, vertical 82° Video Compression StandardH.264 Stream Main stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1 Motion Detection Support Flash-Avoid Frequency 50 Hz, 60 Hz Door Station/Audio Parameters Audio InputBuilt-in omnidirectional microphone Audio OutputLoudspeaker, 20 cm sound effect > 80 db Audio QualityNoise suppression and echo cancellation Audio Compression StandardG.711 U Audio Compression Rate64 Kbps Audio IntercomFull-duplex two-way audio intercom Door Station/Device Interfaces Debugging Port1 RS-4851 (1 for Hikvision's sub module communication) Alarm Input4 (2 exit butttons and 2 door contacts by default) Lock Control2 (2 relay, max to 30 VDC, 2 A) TAMPER Switch1 Power InterfaceTwo-wire Door Station/General Working Temperature-40 °C to 60 °C (-40 °F to 140 °F) Working Humidity10% to 90% Dimension 100 mm × 98 mm × 42 mm (3.94" × 7.8\" × 1.65) " Installation Wall mounting Protection Level IP 65 Button 1 Power Input Powered by KAD704Y or KAD706Y series distributor Indoor Station/System Parameters Operation SystemEmbedded Linux operation system Memory128 MB Flash32 MB Indoor Station/Display Parameters Display Screen7-inch TFT LCD Display Resolution1024 × 600 Operation MethodCapacitive touch Indoor Station/Audio Parameters Audio InputBuilt-in omnidirectional microphone Audio Output Built-in loudspeaker Audio Quality Noise suppression and echo cancellation Volume Local or software control Audio Compression StandardG.711 U, G.711 A Audio Compression Rate64 Kbps Indoor Station/Network Parameters Wired Network Two-wire network   Wireless NetworkWi-Fi 802.11b/g/n Protocol TCP/IP, SIP, RTSP Indoor Station/Device Interfaces Network Interface Two-wire interface RS-4851 Alarm Input8 zones alarm input Relay Output2(30 V Max.) TF CardSupport, Max. 128 GB Indoor Station/General Power Supply Powered by KAD704Y or KAD706Y distributor Power Consumption≤ 4 W Working Temperature-10 °C to 50 °C (14 °F to 122 °F) Working Humidity10% to 90% Dimensions (W × H × D) 200 mm × 140 mm × 23.6 mm (7.87" × 5.51 × 0.93\")" Video Audio Distributor/Interfaces Network Interface 1 RJ45 Two-Wire Interface 6 (2 for cascading and 4 for devices) Signal Indicator 6 Power Indicator 1 Reset 1 Video Audio Distributor/General Power Supply 24 VDC Power ConsumptionCH1 to CH3<4 W, CH4<8 W Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10% to 90%

Download datasheet
