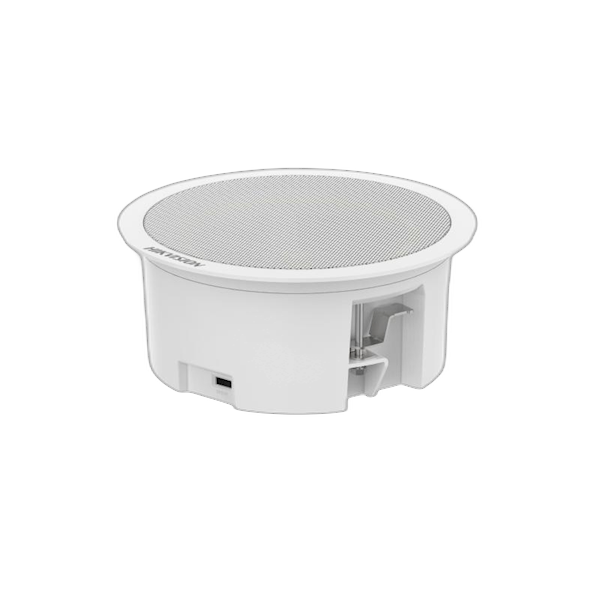

DS-QAZ1206G1-BE , Hikvision netwerk speaker plafond model

Technische specificaties

Speaker Rated Power6 W Impedance8 Ω Max. Acoustic Pressure100 dBSPL Sensitivity(1 M, 1 W)93 dB DirectionAll directions Frequency Response300 Hz to 15 kHz SNR82 dB Function Audio AlgorithmAEC?AGC?ANS?DRC Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Audio File FormatMP3, WAV NTP TimingSupport BroadcastRegular broadcast, live broadcast, emergency broadcast Speech SynthesisEnglish Network Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH Interface Protocol (API)ISAPI, ISUP, SIP, RTP Functions Audio FunctionSupport digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality. Communication Communication MethodSupport wired network and bluetoothcommunication Interface Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1 Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.) APIISAPI, ISUP, SIP AlarmAlarm input × 2 Audio In3.5 mm audio interface × 1 Audio Out fixed resistance output × 1,phoenix terminal,8 Ω *The primary speaker(6 W, 8 Ω) can be connected to a maximum of 1 secondary speaker(6 W, 8 Ω). General PowerPoE: 802.3at,12 VDC/1.5 A MaterialDevice body: plastic; Mesh cover: metal Language5 languages: English, French, Spanish, German, Italian DimensionØ179 mm × 73.5 mm (Ø7.05" × 2.89") (Hole size: 160 mm) Package Dimension255 mm × 243 mm × 175 mm (10.04" × 9.57" × 6.89") WeightApprox. 0.3 kg (0.66 lb.) With Package WeightApprox. 0.5 kg (1.1 lb.) ColorWhite Packing List Device × 1 Mesh cover × 1 Regulatory Compliance and Safety Information × 1 Operating Temperature-10 °C to 50 °C(14 °F to 122 °F) Operating Humidity<90% (No condensation) Approval RF CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018 EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 Safety CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017 Environment CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.

Voor 17:00 besteld, dezelfde werkdag verzonden. Levering doorgaans binnen 1-2 werkdagen. Kies bij het afrekenen voor bezorgen of installatie op locatie.
