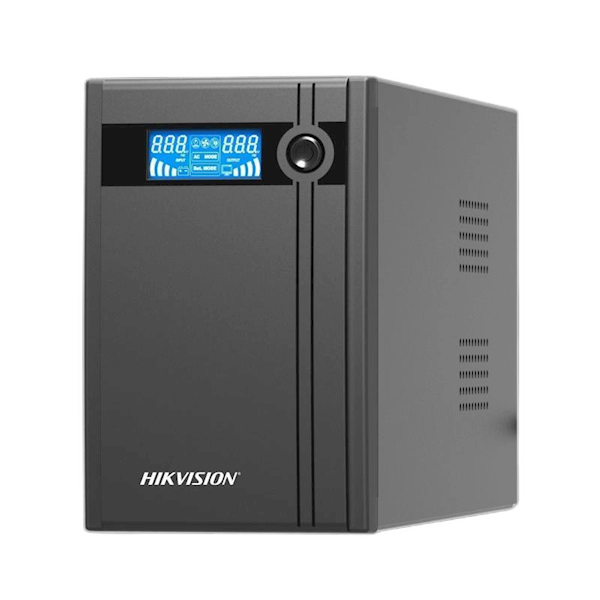

DS-UPS2000/GER Hikvision, UPS, 2000VA

• Built-in AVR
• Super-fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Over-voltage protection
• USB port for PC control
• LCD display

Technical specifications

PowerUPS capacity 2000VA / 1200WInputInput voltage range 140 VAC to 290 VACInput frequency 50/60 Hz auto-sensingPlug type AU TYPE IOutputOutput voltage range 210 VAC to 235 VACOutput frequency 50/60 Hz ± 0.5 Hz auto-sensingTransfer time ≤ 10 msWaveform PWMOutlet type AU TYPE ISocket number 4BatteryBattery type 12 V/9 Ah *2 pcs, lead-acid batteryCharging time 6-8 hours, recovers to 90% capacityTypical backup timeRun time at 100 W: 70 minutesRun time at 300 W: 17 minutesRun time at 600W: 5 minutesInterfaceCommunication ports USBProtectionFull protection Over-voltage protection, overload protection, discharge protection, short circuit protectionIndicatorDisplayLCD displayInput voltage, output voltage, battery capacity, load levelAlarmCharging mode (DC mode): sounds every 8 secondsBattery low: sounds every secondOverload mode: sounds every 0.5 secondsFault: Continuous audibleGeneralOperating temperature 0 °C to 40 °C (32 °F to 104 °F)Operating humidity 30% to 90% (non-condensing)Dimension 345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56")Weight Approx. 11 kg (24.3 lb)
