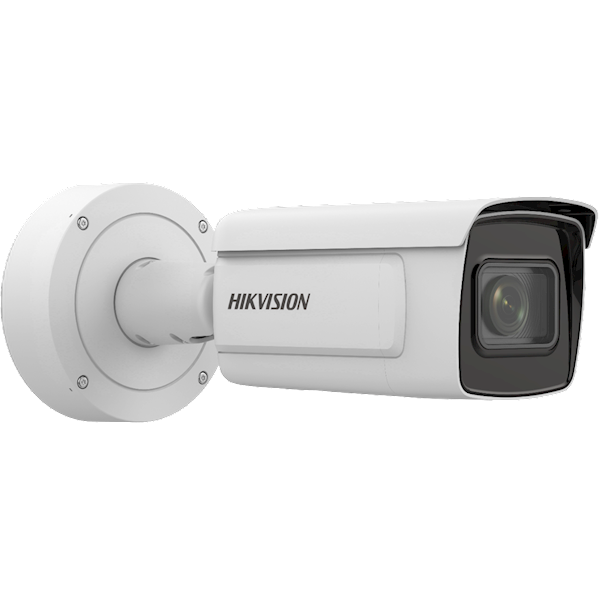

IDS-2CD7A26G0-IZHS 2.8-12MM C, DeepinView Bullet, 2MP

• Bevat Hikvision "Deep Learning algoritmes" t.b.v. meerdere vormen van A.I.
• Hoge kwaliteit beeldvorming met een resolutie van 2MP
• 2.8-12mm motorgestuurde varifocale lens
• Uitstekende prestaties bij weinig licht dankzij DarkFighter-technologie
• Heldere weergave bij sterk tegenlicht dankzij 140dB WDR technologie
• Efficiënte H.265 + compressietechnologie om op te slaan bandbreedte en opslag
• Geavanceerde streamingtechnologie die een soepele liveweergave mogelijk maakt
• Weergave en zelfcorrectie van gegevens in een slecht netwerk
• 5 streams en maximaal 5 aangepaste streams om een breed verschillende toepassingen
• Water- en stofbestendig (IP67) en vandaalbestendig (IK10)

Technische specificaties

CameraImage Sensor 1/1.8″ Progressive Scan CMOSMin. Illumination Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)Shutter Speed 1 s to 1/100,000 sSlow Shutter YesP/N P/NWide Dynamic Range 140 dBDay & Night IR cut filterPower-off Memory YesLensFocus Auto, semi-auto, manualLens Type & FOV2.8 to 12 mm, horizontal FOV: 107.3° to 39.8°, vertical FOV: 55.9° to 22.3°, diagonalFOV: 130.1° to 45.7°8 to 32 mm, horizontal FOV: 40.3° to 14.4°, vertical FOV: 22.1° to 8.2° diagonal FOV:46.9° to 16.5°Aperture2.8 to 12 mm: F1.2 to 2.58 to 32 mm: F1.7 to F1.73Lens Mount IntegratedBlue Glass Module Blue glass module to reduce ghost phenomenon.P-Iris YesIlluminatorIR Range2.8 to 12 mm: 30 m8 to 32 mm: 80 mWavelength 850 nmSmart Supplement Light YesVideoMax. Resolution 1920 × 1080Main Stream50Hz: 50fps (1920 × 1080, 1280 × 720)60Hz: 60fps (1920 × 1080, 1280 × 720)Sub-Stream50Hz: 25fps (704 × 576, 640 × 480)60Hz: 30fps (704 × 480, 640 × 480)Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)Fifth Stream50Hz: 25fps (704 × 576, 640 × 480)60Hz: 30fps (704 × 480, 640 × 480)Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)Video CompressionMain stream: H.265+/H.265/H.264+/ H.264Sub-stream/Third stream/Fourth stream/Fifth stream/customstream:H.265/H.264/MJPEGVideo Bit Rate 32 Kbps to 16 MbpsH.264 Type Baseline Profile/Main Profile/High ProfileH.265 Type Main ProfileH.264+ Main Stream supportsH.265+ Main Stream supportsBit Rate Control CBR/VBRStream Type Main stream/Sub-stream/third stream/fourth stream/fifth stream/custom streamScalable Video Coding (SVC) H.265 and H.264 supportRegion of Interest (ROI) 4 fixed regions for each streamAudioEnvironment Noise Filtering YesAudio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzAudio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)Audio Type Mono soundNetworkSimultaneous Live View Up to 20 channelsAPI ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUPProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLSSmooth Streaming YesUser/Host Up to 32 users. 3 user levels: administrator, operator and userSecurityPassword protection, complicated password, HTTPS encryption,802.1X authentication(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digestauthentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSPOVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), autonetwork replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and healthdetection are supported.Client iVMS-4200, Hik-Connect, Hik-CentralWeb BrowserPlug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+ImageSmart IRThe IR LEDs on camera should support Smart IR function to automatically adjust powerto avoid image overexposure.Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm InTarget Cropping YesPicture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp formatImage Enhancement BLC, HLC, 3D DNR, Defog, EIS, Distortion CorrectionImage Parameters Switch YesImage SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balanceadjustable by client software or web browserSNR ≥52dBInterfaceAlarm 2 input, 2 outputs (max. 24 VDC, 1 A)Audio-IZHSY:1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono soundRS-485 With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)Video Output 1 Vp-p Composite Output(75Ω/CVBS)(For debugging only)On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GBHardware Reset YesCommunication Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet portPower Output With -Y: 12 VDC, max. 200 mA (supported by all power supply types)Heater YesSmart Feature-SetBasic EventMotion detection, video tampering alarm, vibration detection, exception (networkdisconnected, IP address conflict, illegal login, HDD full, HDD error)Smart EventLine crossing detection, up to 4 lines configurableIntrusion detection, up to 4 regions configurableRegion entrance detection, up to 4 regions configurableRegion exiting detection, up to 4 regions configurableUnattended baggage detection, up to 4 regions configurableObject removal detection, up to 4 regions configurableScene change detection, audio exception detection, defocus detectionCounting YesIntelligent (Deep Learning Algorithm)Face RecognitionDetects up to 30 faces simultaneously;Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;Up to 3 face libraries with up to 30000 faces each are configurable;Recognizes face identity via face modeling, grading and comparing to those in facelibrary;Supports face library encryption.Multi-target-type DetectionSupports simultaneous detection of human body and faceGets 8 face features and 13 human body featuresFace CountingSupports entering/exiting counting (track 30 targets simultaneously);Supports facial recognition;Supports 24-hour dynamic deduplication and face library deduplication (up to 3 facelibraries with up to 30000 faces);Supports reporting alarms when detecting the face is the same as that in the facelibrary.Hard Hat DetectionDetects up to 30 human targets simultaneouslySupports up to 4 shield regionsQueue ManagementDetects queuing-up people number, and waiting time of each personGenerates reports to compare the efficiency of different queuing-ups and display thechanging status of one queueSupports raw data export for further analysisPremier ProtectionLine crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag,etc.GeneralLinkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarmoutput, trigger recording, trigger captureTrigger recording: memory card, network storage, pre-record and post-recordTrigger captured pictures uploading: FTP, SFTP, HTTP, NAS, EmailTrigger notification: HTTP, ISAPI, alarm output, EmailOnline Upgrade YesDual Backup YesFirmware Version V5.5.121Web Client Language33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),UkrainianGeneral FunctionAnti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacymasks, flash log, password reset via e-mail, pixel counterSoftware Reset YesStorage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)Power Supply12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE:802.3at,Type 2 Class 4Power Consumption and Current12 VDC, 1.33 A, max. 16.0 WPoE: (802.3at, 42.5V-57V), 0.43 A to 0.31 A, max. 18.0 WPower Interface 3-core terminal blockCamera Material Aluminum alloy bodyScrew Material Mild steelCamera DimensionWithout -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)Package Dimension 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)Camera Weight 1920 g (4.2 lb.)With Package Weight 3060 g (6.7 lb.)MetadataMetadataMetadata of intrusion detection, line crossing detection, region entrance detection,region exiting detection, unattended baggage detection, object removal, face captureand queue management are supported.ApprovalClass Class BEMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)SafetyUL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1:2009 + Am 2: 2013); CE-LVD (EN60950-1: 2005 + Am 1: 2009 + Am 2:2013); BIS (IS 13252(Part 1): 2010+A1: 2013+A2:2015); LOA (IEC/EN 60950-1)Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)Protection Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)Automotive and Railway With -R: EN50121-4Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2014). Anti-corrosion coating, not recommended in highsalinity/humidity/acidity environmentOther With -Y: PVC FREE

Download datasheet
