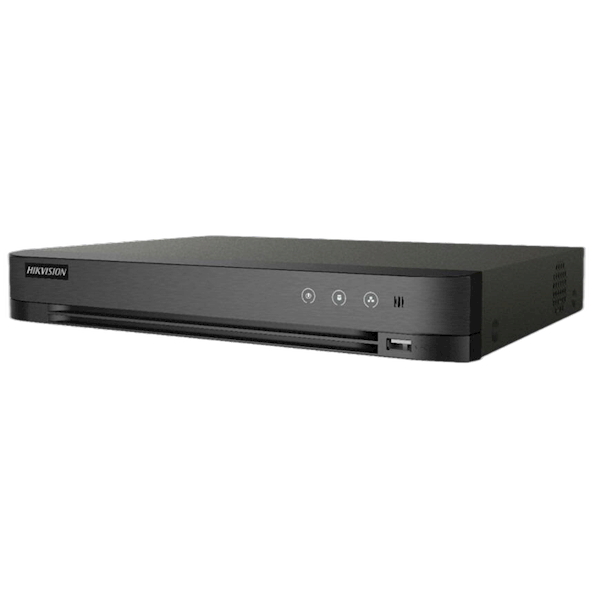

IDS-7208HTHI-M2/S (C), 8-ch 8 MP 1U H.265 AcuSense DVR

• 8 kanalen en 2 HDD 1U AcuSense DVR
• Vermindering van vals alarm door doelclassificatie van mensen en voertuigen op basis van diepgaand leren
• H.265 pro+
• 8 MP @ 12 fps
• 5 signalen adaptief ingevoerd (HDTVI/AHD/CVI/CVBS/IP)
• Er kunnen maximaal 16 netwerkcamera's worden aangesloten.

Technische specificaties

Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Perimeter Protection Line Crossing Detection/Intrusion Detection8-ch Recording Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate32 Kbps to 16 Mbps Dual-StreamSupport Stream TypeVideo, Video & Audio Audio CompressionG.711u Audio Bitrate64 Kbps Video And Audio IP Video Input 8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection otal Bandwidth128 Mbps HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz CVBS InputPAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Synchronous Playback8-ch VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 ps, 720p@50 fps, 720p@30 fps, 720p@25 fps Video Output ModeHDMI/VGA independent output AHD Input5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps HDCVI Input4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps Audio Output1-ch, RCA (Linear, 1 KΩ) Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Network Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection64 Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface Auxiliary Interface SATA2 SATA interface CapacityUp to 10 TB capacity for each disk Serial InterfaceRS-485 (half-duplex) USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 Alarm In/OutN/A (optional to support) General Power Supply12 VDC, 3.33 A Consumption≤ 15 W (without HDD) Working Temperature-10 °C to +55 °C (+14 °F to +131 °F) Working Humidity10% to 90% Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) ≤ 3.1 kg (without HDD, 6.9 lb.)

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.
