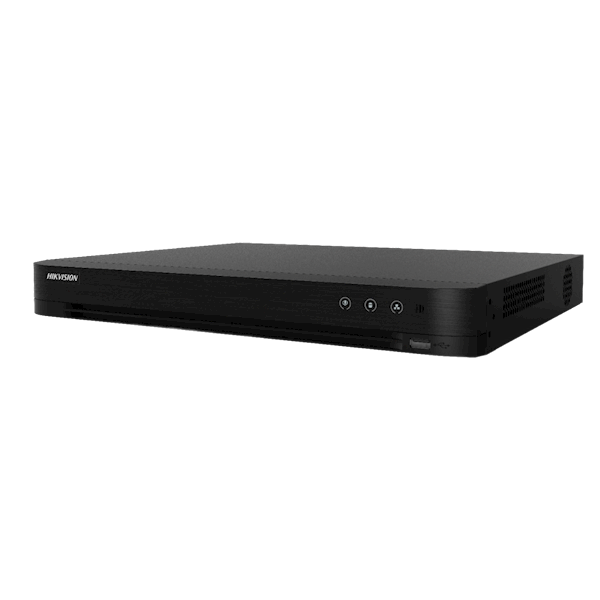

IDS-7216HUHI-M2/P (C), 16 kanaals DVR tbv turbo camera's, audio

• Verzendt zowel HDTVI-video als stroom via dezelfde coaxkabel
• 16 kanalen en 2 HDD 1U DVR
• Efficiënte H.265 pro+ compressietechnologie
• Coderingsmogelijkheid tot 8 MP @8 fps ,5 MP @ 12 fps
• 5 signalen adaptief ingevoerd (HDTVI/AHD/CVI/CVBS/IP)
• Er kunnen maximaal 32 netwerkcamera's worden aangesloten

Technische specificaties

Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Perimeter Protection Line Crossing Detection/Intrusion DetectionUp to 4-ch Recording Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate32 Kbps to 10 Mbps Dual-StreamSupport Stream TypeVideo, Video & Audio Audio CompressionG.711u Audio Bitrate64 Kbps Video And Audio IP Video Input 8-ch (up to 24-ch) Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input 16-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection PoC Camera Input Support Hikvision PoC camera   HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz CVBS InputPAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Synchronous Playback16-ch HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps AHD Input5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDCVI Input4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps Video Output ModeHDMI/VGA simultaneous output Audio Output1-ch, RCA (Linear, 1 KΩ) Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) Network Total Bandwidth128 Mbps Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection128 Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface Auxiliary Interface SATA2 SATA interfaces CapacityUp to 10 TB capacity for each disk Serial InterfaceRS-485 (half-duplex) USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Alarm In/Out4/1 General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption≤ 20 W (without HDD) Working Temperature-10 °C to +55 °C (+14 °F to +131 °F) Working Humidity10% to 90% Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) ≤ 3.8 kg (without HDD, 8.4 lb.)

Download datasheet

Reinig de behuizing met een licht vochtige doek. Vermijd agressieve schoonmaakmiddelen en directe waterstralen op aansluitingen.

Voor 17:00 besteld, dezelfde werkdag verzonden. Levering doorgaans binnen 1-2 werkdagen. Kies bij het afrekenen voor bezorgen of installatie op locatie.
