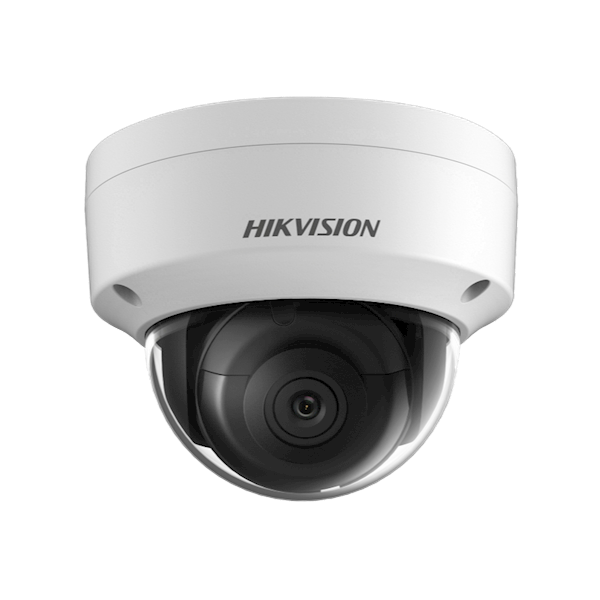

DS-2CD2146G2-I Hikvision AcuSense 4MP dome camera 6MM wit

• Wij adviseren deze camera voor overdekt gebruik
• Hoge beeldkwaliteit met een resolutie van 4MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• Efficiënte H.265 + compressietechnologie
• Helder beeld bij sterk tegenlicht dankzij 120dB true WDR-technologie
• Reductie van valse alarmen door middel van classificatie van doelen voor mensen en voertuigen op basis van deep learning
• -SU: Water- en stofbestendig (IP66) en vandalismebestendig (IK10); -I: Water- en stofbestendig (IP67) en vandalismebestendig (IK10)
• -SU: ingebouwde microfoon voor realtime automatische beveiliging
• 3D DNR-technologie zorgt voor heldere en scherpe beelden

Technische specificaties

Camera Image Sensor1/2.7" Progressive Scan CMOS Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON) Shutter Speed1/3 s to 1/100,000 s Day & NightI CR Cut Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Slow Shutter Wide Dynamic Range120 dB Lens Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123° 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° ApertureF1.4 Lens MountM12 Iris TypeF ixed Illuminator IR RangeUp to 30 m IR Wavelength 850 nm Smart Supplement Light Yes Supplement Light Type IR Video Max. Resolution2592 × 1944 Main Stream50Hz: 20fps (2592 × 1944)25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)60Hz: 20fps (2592 × 1944)30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) Audio Environment Noise Filtering-S: Yes Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3 Audio Bit Rate-S: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3) Network Simultaneous Live ViewUp to 6 channels APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP Smooth StreamingYes User/HostUp to 32 users. 3 user levels: administrator, operator and user SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported ClientiVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Image Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Alarm -S: 1 input, 1 output (max. 12 VDC @30 mA) Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibrium Built-in Microphone-U: Yes On-Board StorageBuilt-in micro SD slot, up to 256 GB Hardware ResetYes Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port Deep Learning Function Face CaptureYes Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection Intelligent (Traditional Algorithm) Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection General Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, class 3 Power Consumption and Current 12 VDC, 0.45 A, max. 5.4 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W Power InterfaceØ5.5 mm coaxial power plug Camera DimensionØ121 × 92 mm (4.8" × 3.6") Package Dimension150 × 150 × 141 mm (5.9" × 5.9" × 5.6") Camera Weigh tApprox. 585 g (1.3 lb.) With Package Weight Approx. 836 g (1.8 lb.) Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audible warning Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter Approval EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) ProtectionIngression protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Download datasheet
