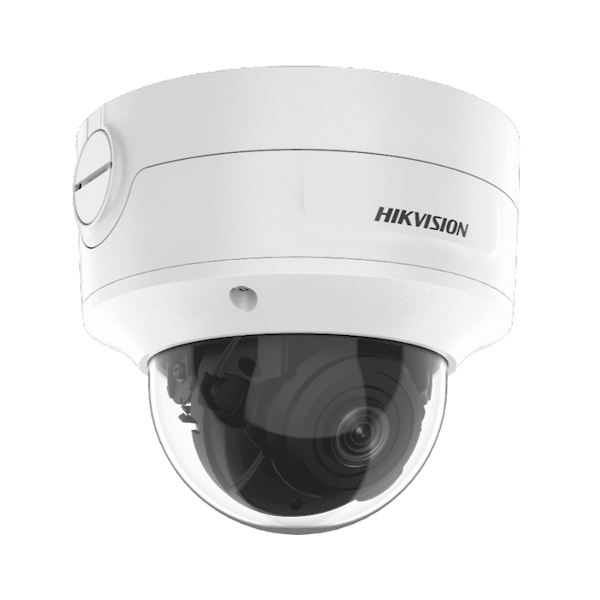

DS-2CD2746G2-IZS(C) Hikvision AcuSense varifocale dome 4MP 2.8-12MM wit

• Hoge beeldkwaliteit met een resolutie van 4 MP
• Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
• Helder beeld bij sterk tegenlicht dankzij 120 dB true WDR-technologie
• Efficiënte H.265 + compressietechnologie
• Reductie van valse alarmen door middel van classificatie van doelen voor mensen en voertuigen op basis van DeepLearning
• -S: audio- en alarminterface beschikbaar
• Water- en stofbestendig (IP66) en vandalismebestendig (IK10)
• 3D DNR-technologie zorgt voor heldere en scherpe beelden

Technische specificaties

Camera Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON) Shutter Speed: 1/3 s to 1/100,000 s Day & Night: ICR Cut Slow Shutter: Yes Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Wide Dynamic Range: 120 dB Power-off Memory: Yes Lens Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° Aperture: F1.4 Lens Mount: Ø14 Iris Type: Fixed Focus: Auto Illuminator IR Range: Up to 40 m IR Wavelength: 850 nm Smart Supplement Light: Yes Supplement Light Type: IR Video Max. Resolution2592 × 1944 Main Stream 50Hz: 20fps (2592 × 1944)25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2592 × 1944)30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) Video Compression Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile H.264+: Main Stream supports H.265+: Main Stream supports Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): Yes Region of Interest (ROI): 1 fixed region for each stream Network Simultaneous Live View: Up to 6 channels API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP Smooth Streaming: Yes User/Host: Up to 32 users. 3 user levels: administrator, operator and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported Client: iVMS-4200, Hik-Connect, Hik-Central Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Image Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Alarm: 1 input, 1 output (max. 24 VDC/24 VAC @500 mA) Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium On-Board Storage: Built-in micro SD slot, up to 256 GB Hardware Reset: Yes Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Deep Learning Function Face Capture: Yes Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Intelligence Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),scene change detection General Storage Conditions: -30 °C to 60 °C. Humidity 95% or less (non-condensing) Startup and Operating Conditions: -30 °C to 60 °C. Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, reverse polarity protectionPoE: 802.3af,class 3 Power Consumption and Current 12 VDC, 0.9 A, max. 10.8 WPoE: (802.3af, 36 V to 57 V), 0.36 A to 0.23 A, max. 12.9 W Power Interface: Two-core terminal block Camera Dimension: Ø153.5 × 133.1 mm (6.0" × 5.2") Package Dimension: 244 × 174 × 173 mm (9.6" × 6.9" × 6.8") Camera Weight: Approx. 830 g With Package Weight: Approx. 1709 g Linkage Method: Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audible warning Web Client Language,33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter Software Reset: Yes Approval EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment: CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) Protection: Ingression protection: IP66 (IEC 60529-2013), IK10(IEC 62262:2002)

Download datasheet
