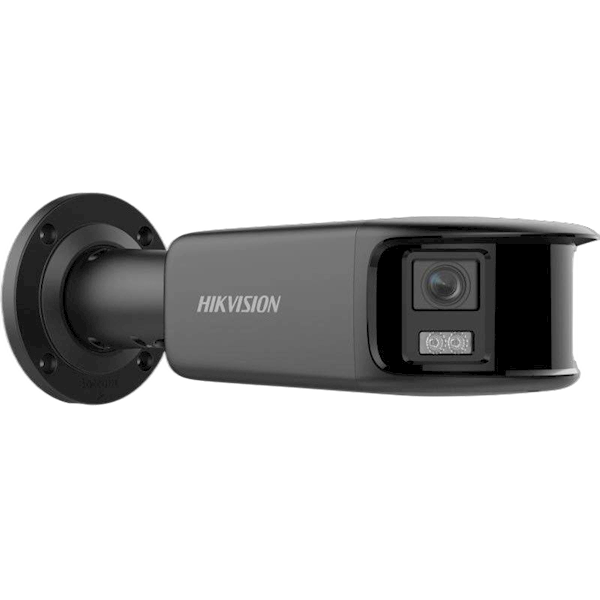

DS-2CD2T87G2P-LSU/SL(4MM)(C)/B Hikvision bullet ColorVu 8MP, 180 graden panoramisch, 4mm zwart

• Welke NVR is benodigd bij deze 8MP 180° camera: klik hier
• Hoge kwaliteit beeldvorming met 8 MP (4K) resolutie
• Eén beeld met alle scènes
• 24/7 kleurrijke beeldvorming
• Efficiënte H.265+ compressie technologie
• Helder beeld bij sterk tegenlicht dankzij 130 dB WDR-technologie
• Focus op classificatie van mensen en voertuigen op basis van deep learning
• Actief stroboscooplicht en audioalarm om indringers te waarschuwen
• Water- en stofbestendig (IP67)

Technische specificaties

CameraImage Sensor 2 × 1/1.8" Progressive Scan CMOSMax. Resolution 5120 × 1440Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with lightShutter Time 1/3 s to 1/100, 000 sAngle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°LensLens Type Fixed focal lens, dual lens: 4 mmFocal Length & FOVHorizontal FOV: 180° ± 10°Vertical FOV: 44°Lens Mount M16Iris Type FixedAperture F1.0Depth of Field 3.6 m to ∞DORIDORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 mIlluminatorSupplement Light Type White LightSupplement Light Range Up to 40 mSmart Supplement Light YesVideoMain StreamWhen WDR is On:50 Hz: 12.5 fps (5120 × 1440)60 Hz: 15 fps (5120 × 1440)When WDR is Off:50 Hz: 20 fps (5120 × 1440)60 Hz: 20 fps (5120 × 1440)Sub-StreamWhen WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272)60 Hz: 15 fps (1920 × 536, 960 × 272)When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272)60 Hz: 20 fps (1920 × 536, 960 × 272)Video CompressionMain stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGVideo Bit Rate 32 Kbps to 16 MbpsH.264 Type Baseline Profile, Main Profile, High ProfileH.265 Type Main ProfileBit Rate Control CBR, VBRScalable Video Coding (SVC) H.264 and H.265 encodingRegion of Interest (ROI) 1 fixed region(s) for main streamAudioAudio Type Mono soundAudio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LCAudio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzEnvironment Noise Filtering YesNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMPSimultaneous Live View Up to 6 channelsAPI Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUPUser/HostUp to 32 users3 user levels: administrator, operator, and userSecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication(EAP-MD5), watermark, IP address filter, basic and digest authentication forHTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, hostauthentication (MAC address)Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,Together with high-end Hikvision memory card, memory card encryption and healthdetection are supported.Client iVMS-4200, Hik-Connect, Hik-CentralWeb BrowserPlug-in required live view: IE 10, IE 11 ,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+ImageImage Parameters Switch YesImage Settingssaturation, brightness, contrast, sharpness, gain, white balance, adjustable by clientsoftware or web browserDay/Night Switch Day, Night, Auto, ScheduleWide Dynamic Range (WDR) 130 dBSNR ≥ 52 dBImage Enhancement BLC, HLC, 3D DNRInterfaceEthernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256GBBuilt-in Microphone YesBuilt-in Speaker Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dBAudio1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7KΩ, interface type: non-equilibrium,1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, outputimpedance: 100 Ω, interface type: non-equilibriumAlarm 1 input, 1 output (max. 24 VDC, 1 A)Reset Key YesEventBasic EventMotion detection (support alarm triggering by specified target types (human andvehicle)), alarm input and output, flashing alarm light output, audible alarm output,exceptionSmart EventLine crossing detection, intrusion detection, region entrance detection, region exitingdetection (support alarm triggered by specified target types (human and vehicle)),scene change detectionLinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarmoutput, trigger recording, trigger capture, audible warning, white light flashingDeep Learning FunctionPerimeter ProtectionLine crossing, intrusion, region entrance, region exiting (support alarm triggering byspecified target types (human and vehicle))GeneralPower12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø 5.5 mm coaxial power plug,PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 WMaterial Front cover: metal, body: metal, bracket: metalDimension 118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")Package Dimension 405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")Weight Approx. 1420 g (3.1 lb.)With Package Weight Approx. 2228 g (4.9 lb.)Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup and OperatingConditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianGeneral Function Anti-flicker, heartbeat, password reset via email, password protection, one-key resetFlashing Light YesApprovalEMCFCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7SafetyUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006Protection IP67: IEC 60529-2013
