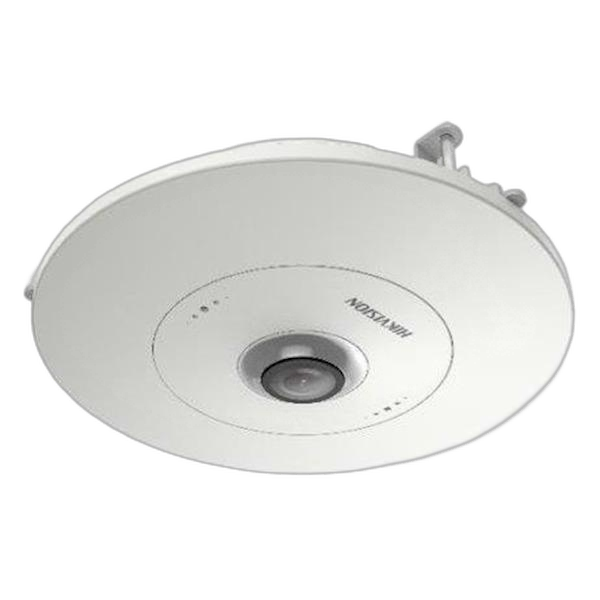

DS-2CD6365G0E-S/RC 1.27MM Hikvision Fisheye camera 6MP, plafond inbouw

• 6MP kwaliteit
• 1/1.8” Progressive Scan CMOS
• Max. 3072 × 2048 @30fps
• Tot 14 live weergavemodussen
• Digitale WDR
• Ingebouwde microfoon
• Slimme functies: 6 gedragsanalyses en 1 uitzonderingsdetectie
• Montage in plafond

Technische specificaties

Camera Image Sensor1/1.8'' Progressive Scan CMOS Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) Shutter Speed1 s to 1/100,000 s Slow ShutterYes Digital Noise Reduction3D DNR WDRDigital WDR Lens FOV360°(In-ceiling mounting) Lens MountM12 Focal length1.27 mm Aperture RangeF 2.6 Audio Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) Environment Noise FilteringYes Audio Sampling Rate8 kHz/16 kHz Image Image EnhancementBLC, HLC, defog, 3D DNR Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S) Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format Max. Resolution3072 × 2048 Main StreamMax. Frame Rate50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280) Sub-streamMax. Frame Rate50Hz: 25fps (720 × 720, 720 × 480) 60Hz: 30fps (720 × 720, 720 × 480) Network Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour APIONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live ViewUp to 20 channels User/HostUp to 32 users. 3 user levels, administrator, operator and user ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200 Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+ Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error Security MeasuresPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Firmware Version5.5.73 Interface Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port Reset ButtonYes Audio (-S)1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm); 2 built-in microphones, mono sound Alarm (-S)1-ch alarm input, max. 12 V; 1-ch alarm output, max 12 VDC, 0.5 A On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB General Power Supply12 VDC±20%, PoE (802.3af, class 3), two-core terminal block MaterialCover & trim ring: plastic, bottom base: metal DimensionsΦ165 × 69 mm (6. 5" × 2.7") WeightApprox. 480 g (1.1 lbs) Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing) Power Consumption12 VDC±20%, PoE (802.3af, class 3), two-core terminal block Compression Standard H.264+Main stream supports H.265+Main stream supports H.264 TypeBaseline Profile/Main Profile/High Profile Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG H.265 TypeMain Profile Video Bitrate32 Kbps to 16 Mbps SVCH.265 and H.264 support Live View Display Display Mode14 display modes in total Software decoding: Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder Hardware decoding: Fisheye view, 180 panorama view, panorama view, 4PTZ, 4PTZ fusion, fisheye + 3PTZ, Mount TypeSupport in-ceiling mounting Smart Feature-set Exception DetectionAudio exception detection Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Region of Interest4 fixed regions for main stream and sub-stream

Download datasheet
