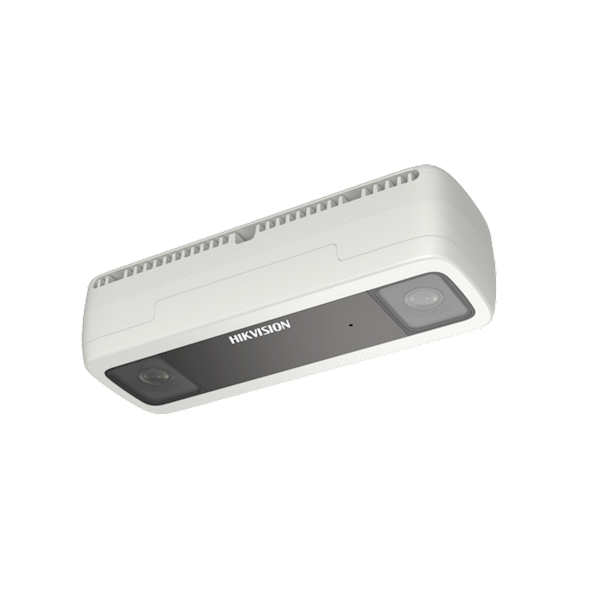

DS-2CD6825G0/C-IVS 2MM(B), Hikvision Outdoor Dual Lens People Counting Camera 2mm

• Toepassing: het tellen van mensen op locatie, buitengebruik
• Wordt veel toegepast in o.a. retail, musea, openbare gebouwen, overheid et cetera
• Kwaliteit 2MP (resolutie van 1920 x 1080) @30fps
• Dual Lens 2mm (fixed)
• VCA people counting: o.a. het tellen van binnenkomen apart van naar buiten gaan, diverse (real-time) rapportages en statistieken per dag, week of maand
• Werkt met iVMS-4200 en Hik-Connect
• Netwerk 10/100M Ethernet
• Audio ondersteuning (-S model)
• Voeding: 12VDC en POE (802.3af)
• Afmeting -S model: 168 mm × 61 mm × 36 mm
• Gewicht: 435Gr.

Technische specificaties

CameraImage Sensor 1/1.2.7" Progressive Scan CMOSMin. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON)Shutter Speed 1/25 s to 1/100,000 sDay & Night IR Cut FilterWDR Digital WDRLensFocal Length 2 mm fixed lensAperture F2.25FOV Horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°Lens Mount M12IRIR Range Up to 6 m IR rangeWavelength 850 nmVideoMax. Resolution 1920 × 1080Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 720)Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEGH.264 Type BaseLine Profile/Main Profile/High ProfileH.264+ Main stream supportsH.265 Type Main ProfileH.265+ Main stream supportsVideo Bit Rate 32 Kbps to 16 MbpsSVC H.265 and H.264 supportAudioAudio Compression G.711/G.722.1/G.726/MP2L2/PCMAudio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)Environment Noise Filtering YesAudio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHzSmart Feature-SetBasic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)People CountingCounts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by heightLinkage MethodUpload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger captureRegion of Interest 4 fixed regions for main stream and sub-streamImageImage Enhancement HLC, BLC, 3D DNR, defogImage SettingSaturation, brightness, contrast, sharpness are adjustable by client software or webbrowserDay/Night Switch Day/Night/Auto/Schedule/Triggered by alarm input (-S)Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp formatNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLSAPI ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome (5.0)SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit logSimultaneous Live View Up to 20 channelsUser/Host Up to 32 users. 3 user levels: administrator, operator and userClient iVMS-4200, Hik-ConnectWeb Browser IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11InterfaceCommunication Interface1 RJ45 10M/100M Ethernet port, -S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)Audio1 built-in mic -S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono soundAlarm (-S) 1 input, 1 output (max. 24 VDC, 1 A)GeneralFirmware Version 5.5.90Web Client Language32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)General Function Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filterStartup and Operating Conditions-30 °C to +45 °C (-22 °F to +113 °F), Humidity 95% or less (non-condensing)Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)Power Supply12 VDC±20%, reverse polarity protection, Φ5.5mm coaxial power plug 12 VDC, PoE (36 to 57 VDC, 802.3af), Calss3Power Consumption 12 VDC, 0.66 A, max. 8 W, PoE (802.3 af, 36 to 57 VDC), 0.23 A to 0.14 A, max. 8.3 W Material Front cover: plastic, camera body: metalDimensionsWith -V: 168 mm × 61 mm × 41 mm (6.6" × 2.4" × 1.6" ) Without -V: 168 mm × 61 mm × 36 mm (6.6" × 2.4" × 1.4") With Package: 235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")WeightCamera: Approx. 435 g (1 lb.) With package: 725 g (1.6 lb)ApprovalEMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015Environment 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006Protection With -V model: IP67 (IEC 60529-2013)

Download datasheet
