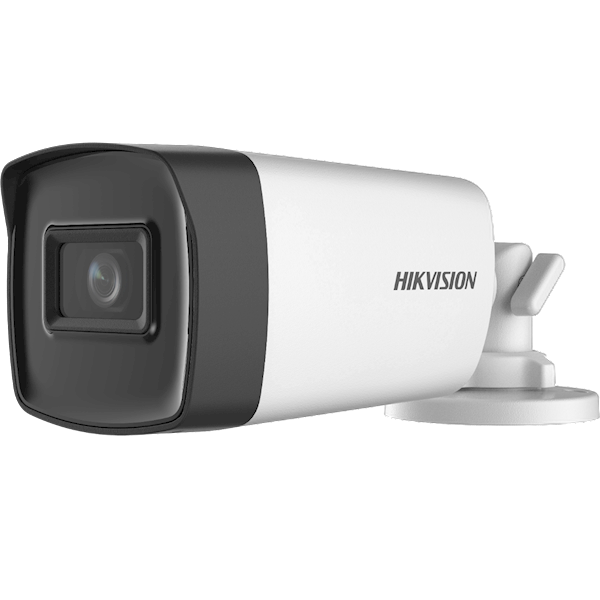

DS-2CE17H0T-IT3E 3.6MM (C), Turbo Ultra Low Light bullet met Power over Coax

• High quality imaging with 5 MP, 2560 × 1944 resolution
• 2.8 mm, 3.6 mm and 6 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)

Technische specificaties

Camera Image Sensor5 MP CMOS Max. Resolution2560 (H) × 1944 (V) Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Day & NightICR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° Signal SystemPAL/NTSC Lens Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens Focal Length & FOV 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV: 72° Lens MountM12 Image Image Parameters SwitchSTD/HIGH-SAT Image SettingsBrightness, Sharpness, Smart IR Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps Day/Night ModeAuto/Color/BW (Black and White) Wide Dynamic Range (WDR)Digital WDR Image EnhancementDWDR, BLC, HLC, Global Noise Reduction2D DNR White BalanceAuto/Manual AGCYes Interface Video Output1 HD analog output General Material Front Cover: Metal Main Body: Plastic Dimension 216.6 mm × 78.9 mm × 75.4 mm (8.53" × 3.10" × 2.97") Approx. 380 g (0.84 lb.) Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Communication HIKVISION-C Language English Power Supply 12 VDC ±25%/PoC.af*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. Consumption Max. 4 W IR RangeUp to 40 m Approval ProtectionIP67

Download datasheet
