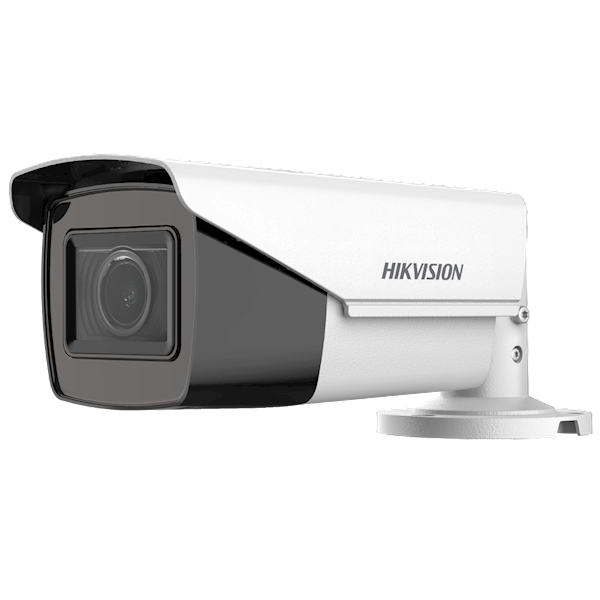

DS-2CE19H0T-AIT3ZF 2.7-13.5MM, Varifocal 5MP Turbo bullet

• Hoge kwaliteit beeldvorming met 5 MP, 2560 × 1944 resolutie
• Gemotoriseerde varifocale lens van 2,7 mm tot 13,5 mm
• Tot 40 m IR-afstand voor heldere nachtopnamen
• Eén poort voor vier schakelbare signalen (TVI/AHD/CVI/CVBS)
• Water- en stofbestendig (IP67)

Technische specificaties

Camera Image Sensor5 MP CMOS Signal SystemPAL/NTSC Resolutie2560 (H) × 1944 (V) Frame Rate TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s Lens2.7 mm to 13.5 mm motorized varifocal lens Field Of Viewhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33° Lens MountΦ14 Day & NightIR Cut Filter WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° Image Day/Night ModeAuto/Color/BW (Black and White) Image ModeSTD/HIGH-SAT AGCYes White BalanceAuto/Manual AE (Auto Exposure) ModeBLC;HLC;Global;DWDR Noise Reduction2D DNR LanguageEnglish FunctionSharpness;Brightness;Smart IR Interface Video OutputSwitchable TVI/AHD/CVI/CVBS General IR RangeUp to 40 m Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) Stroomvoorziening 12 VDC ±15%, 24 VAC±15% Consumption Max 8.8 W Beschermingsniveau IP67 MateriaalFront cover: Metal, Main body: Plastic Communicatie HIKVISION-C Dimension 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10.04") Approx. 682 g (1.50 lb.)

Download datasheet
