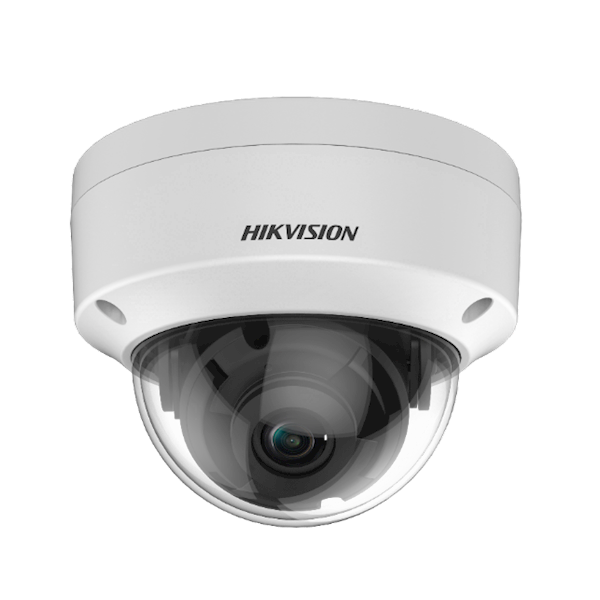

DS-2CE56H8T-AITZF(2.7-13.5MM), Hikvision 5MP Dome varifocale lens 2.7-13.5mm

• 5 MP high performance CMOS
• Autofocus
• Resolutie van 2560 × 1944
• Gemotoriseerde varifocale lens van 2,7 mm tot 13,5 mm
• EXIR 2.0, slimme IR, tot 60 m IR-afstand
• OSD menu, 3D DNR, 130 dB true WDR
• 4 in 1 video-uitgang (schakelbare TVI / AHD / CVI / CVBS)
• Up the coax (HIKVISION-C)

Technische specificaties

Camera Lens2.7 mm to 13.5 mm motorized varifocal lens Horizontal Field of View92.3° to 29.3° Lens MountΦ 14 Day & NightIR cut filter, Auto/Color/BW (Black and White) SynchronizationInternal synchronization WDR (Wide Dynamic Range)≥ 130 dB Angle AdjustmentPan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355° Image Sensor5 megapixel progressive scan CMOS Signal SystemPAL/NTSC Frame RateTVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,CVI: 4 MP@25fps, 4 MP@30fps,CVBS: PAL, NTSC Resolution2560 (H) × 1944 (V) Min. illuminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s Menu AGCYes White BalanceAuto/Manual Privacy Mask4 programmable privacy masks Motion Detection4 programmable areas Backlight CompensationYes WDRYes 3D DNR (Digital Noise Reduction)Level 1 to 9 LanguageEnglish FunctionsBrightness, Sharpness, 3D DNR, Mirror, Smart IR Interface Video Output1 HD analog output Switch ButtonTVI/AHD/CVI/CVBS General Operating Condition-40 °C to 50 °C (-40 °F to 122 °F), humidity: 90% or less (non-condensing) Power Supply-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC Power Consumption-A: Max. 8 W MaterialPlastic IR RangeUp to 60 m CommunicationUp the coax, Protocol: HIKVISION-C (TVI output) DimensionsΦ 136 mm × 101.9 mm ( Φ 5.35" × 4.01") WeightApprox. 430 g (0.95 lb.)

Download datasheet
