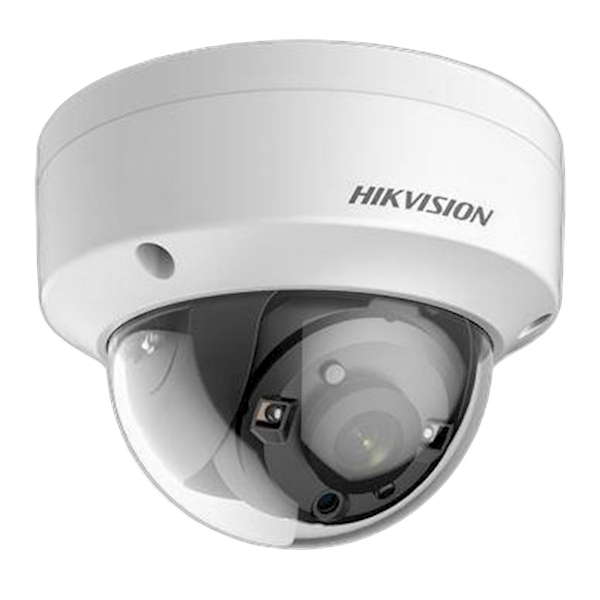

DS-2CE57H8T-VPITF 3.6MM, Hikvision 5MP Dome 3.6mm

• 5 Megapixel high-performance CMOS
• 3,6 mm vaste lens
• 2560 × 1944 resolutie
• EXIR 2.0, smart IR, tot 30m IR afstand
• OSD menu, 3D DNR,
• 130 dB True WDR
• IP67,IK10
• 4 in 1 video output (schakelbare TVI/AHD/CVI/CVBS)

Technische specificaties

Camera Image Sensor:   5 megapixel progressive scan CMOS Signal System:   PAL/NTSC Effective Pixels:   2560 (H) × 1944 (V) Min. Illumination:   Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time:   1/25(1/30) s to 1/50,000 s Lens:   2.8 mm, 3.6 mm, 6 mm fixed lens Lens Mount:   M12 Adjustment Range:   Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° Day& Night:   IR cut filter Video Frame Rate:   TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC Synchronization:   Internal Synchronization Menu 3D DNR (Digital Noise Reduction):   Level 1 to 9 D/N Mode:   Auto/Color/BW (Black and White) Auto White Balance:   Auto / Manual BLC:   Support AGC:   Support WDR:   Yes Language:   English Function:   Brightness, Sharpness, DNR, Mirror, Smart IR Interface Video Out:   1 HD analog output General Operating Conditions:   -40 °C - 60 °C (-40 °F - 140 °F)Humidity 90% or less (non-condensing) Power Supply:   12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. Impact Protection:   IK10. Weather Proof:   IP67 IR Range:   Up to 30m Communication :   Up the coaxProtocol: HIKVISION-C(Coaxitron) Dimension:   Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2" ) Weight:   Approx.500 g (1.10 lb.)

Download datasheet
